> New 100' 2 gauge welding and battery cable usa copper
New 100' 2 gauge welding and battery cable usa copper

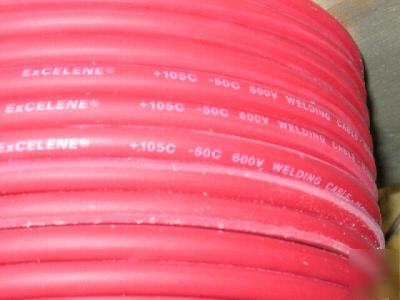

BRAND NEW 100' OF ROYAL EXCELENE #2 GAUGE WELDING CABLE IN RED, VERY HIGH FLEXIBILITY CABLE THAT IS MADE IN THE USA, TEMPERATURE RATING IS 105C-50C. 600V CONDUCTOR STRANDING IS 644 STRANDS OF 30 GAUGE COPPER. WELDING CABLE DOES HAVE A TAPE SEPARATOR COVER THAT LAYS BETWEEN THE JACKET AND THE COPPER TO PREVENT THE COPPER FROM STICKING TO THE JACKET DUE TO HEAT. NOMINAL O.D IS 0.49 AND NOMINAL WALL THICKNESS IS 0.06. DC Resistance per Conductor @ 20OC 0.167 Ohms/1M'
May used in accordance with National Electric Code Article 630 Electric Welders.
* Annealed stranded bare copper per ASTM B-172
* Foot marked for easy length identification
* Ozone, sun, weather, and chemical resistant
* Designed for use as welding leads from the secondary side of the power source - typical of arc welders and welding generators
* Additional uses may include flexible lead cable; electrode to welder unit, battery cables, and temporary and permanent lead cables
