Heckert universal cnc machining center

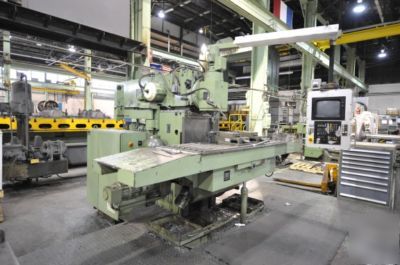

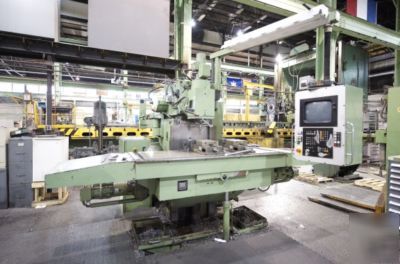

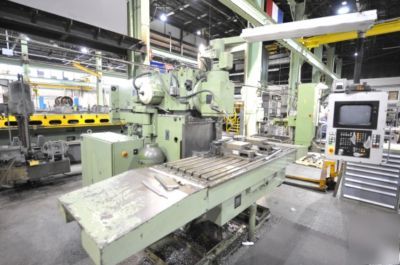

Heckert Universal CNC Machining Center
Model: FQW-560TNC Vertical/Horizontal
X-Axis Table Travel .................. 54.72"
Y-Axis Head Travel ................... 27.95"
Z-Axis Vertical Travel of Knee ....... 21.25"
Table Size ........................... 22.04" x 70.86"
Table Capacity ....................... 3,300 lbs.
Distance Front Edge Table to Column .. 30.82"
Swivel Range (+/-) Universal ......... 45 Degrees
Feeds, Stepless ...................... 0-78.74" IPM
Rapid Traverse, X & Y Axes ........... 196.85"
Rapid Traverse, Z-Axis ............... 98.42"
Spindle Taper ........................ #50
Spindle Speeds ....................... 18-2240 RPM
Rapid Traverse ....................... 393 IPM
Machine Weight ....................... 11,400 Lbs

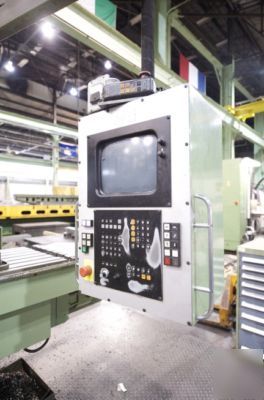

Heidenhain TNC 355 4-Axis CNC Control
Horizontal & Vertical Model AP5/2 Swivel Head
Machine Footprint: 178" x 161" x 100"
