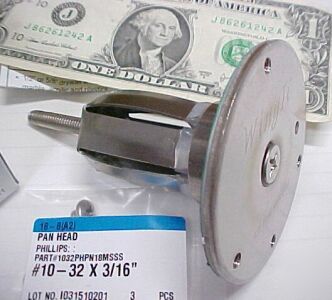

Wingits stainless commercial grab bar anchors GBW40
WingIt says they will hold up to 1,000 pounds, and they do appear to be very sturdy anchors. That ring of 3M VHB adhesive tape is also rumored to be some bad stuff. But a thousand pounds is a lot of weight, so use common sense. If you attach a chain and try to hoist the motor out of your truck, you might be disappointed.
One side of the box shows a picture of some big dude holding two unsuspecting kids while swinging from a grab bar mounted a few feet off the floor. Frankly, I think it would have been much more impressive if they were hanging off the side of a building somewhere - maybe twenty stories above a busy street, with a big crowd watching. But I guess some child advocate would have gotten involved and ruined the experiment.
The rest of the box is covered with useful (+/-) information, and I'll include as much as possible before I get tired of typing:
Government Contract: #GS-07F0333K
GSA Federal Supply Schedule Contract No. GS-07F-0333K
Install a Grab Bar Exactly Where You Want It - Exactly Where You Need It!
The WingIt meets all ADA criteria and all federal, regional, and local building codes. The WingIt will hold from 420 pounds to 1000 pounds in the following substrates:
1/2" or 5/8" drywall with tub surround
1/2" or 5/8" drywall with acrylic tub liners
1/2" or 5/8" drywall with fiberglass
1/2" or 5/8" drywall with tile, marble and stone
1/2" or 5/8" drywall with any panel types:
fiberglass, faux marble, acrylics, plastics, etc.
5/8" drywall - painted or wallpapered
1/4" acrylic / fiberglass tub surrounds
1/4" acrylic / fiberglass stand alone surrounds
All masonry type boards, with or without panel
100% American Made from 304 (18/8) Stainless Steel
Eliminates the Need to Tear Open & Reconstruct Walls
Exceeds All Building Codes and Government Guidelines
WingIts are Being Used by All Major Hotels - Marriot, Etc.
COMMERCIAL Grab Bar WingIt - GBW40
WingIt Grab Bar Fastening Systems are made from 18/8 Stainless Steel and can be used in most hollow wall construction (see Installation Instructions). Typical straight Grab Bars use two GBW40s. WingIts become waterproof as they are installed into the wall. GBW40s can be installed into wall substrates (tile, drywall, etc.) up to 1.5" thick. GBW40s use 3M's best waterproofing adhesive to install completely waterproof in minutes. 1.25" hole required for installation
