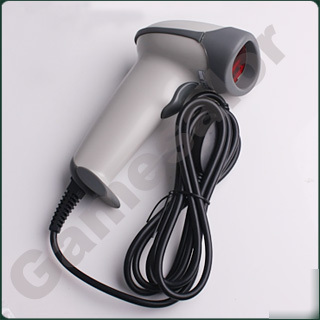

Usb scan laser barcode scanner bar code reader #9914
Simple installation , keyboard wedge, serial, wand emulation
Superior keyboard wedge interface NOVELL compatible auto caps lock detection ensures that the data always appears on the computer just the way it is encoded in the bar code
Simple programming from your keyboard or scan bar codes.
Automatically clones decoders in under 10 seconds over 300 decoders per hour
Auto detection of the type of computer ( PC , XT , PS/2 and XWindow terminals with a PC compatible keyboard interface )
Can be used with or without the keyboard
Map bar code to any key on the keyboard
Macro support ,replace a string in the bar code with another
Programmable preamble, postamble, and termination strings
READ / NO-READ indicators ( Buzzer and LED )
Superior reading performance utilizing advanced decoding algorithms
Extended ASCII support for code 128 bar codes
Light Source :650-670nm ( Visible )
Reading Distance: 2.5 -600mm ( 100% UPC / EAN )
Print Contrast : 30% minimum reflective difference
Scanning angle: Inclination angle 45 Elevation angle 60
Interfaces Supported: Keyboard wedge / RS232 / USB
Current consumption:100mA ( Idle current <40mA )
Operating temperature:0 C-50 C / 32 F to 122 F
Storage Temperature: -40 C-70 C / -40 F to 158 F
Ambient light immunity: Immune to direct exposure of normal office and factory, lighting conditions, as well as direct exposure to sunlight
Electrostatic Discharge: Conforms to 15KV air discharge and 8KV of contact discharge
Safety: CORH class 2 Laser product , FCC class A and CE
Dimensions: 160mm x 65mm x 85mm
