> #SC28 warner & swasey "M4530" 2-axis cnc turret lathe
#SC28 warner & swasey "M4530" 2-axis cnc turret lathe

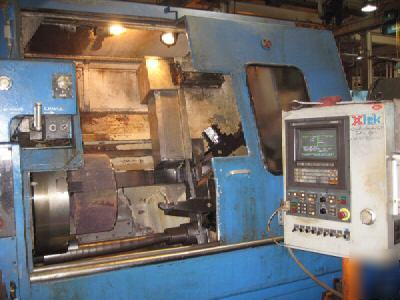

#SC28 WARNER & SWASEY "M4530" 2-AXIS CNC TURRET LATHE
Serial 2445539, Model SC28, Series M4530,
Allen Bradley 9/Series CNC Control
2-Axis Machine Design - 20-Degree Slant-Bed Design
28" 3-Jaw Cushman Chuck - Power Chuck Wrench
6-Station Cross-Sliding Turret - RS 232 Port
#A1-15" American Standard Spindle Nose
Hole thru Spindle........................ 6.25"
Chuck Diameter........................... 28"
Swing Over Bed Ways, Maximum............. 28"
Swing 17.75" From Spindle Flange......... 33.75"
Turret Longitudinal Travel............... 41"
Turret Cross Travel...................... 15.25"
Distance Spindle to Turret Face, Max..... 60.25"
(32) Spindle Speeds, Range............... 12 to 851 RPM
Power Rapid Traverse, Longitudinal....... 250 IPM
Power Rapid Traverse, Cross.............. 125 IPM
Floor Space Required, L x D.............. 20'4" x 8'6"
Motor Horsepower......................... 40/20 HP
Electrical System........................ 460/3/60
Weight, Approximately.................... 26800 LBS
