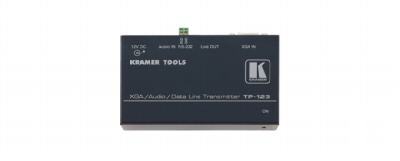

Kramer tp-123 video audio twist pair transmitter
Manufacturer: Kramer Electronics Model/Part #: TP-123
The TP-123 and TP-124 are a twisted pair transmitter and receiver for computer graphics video, unbalanced stereo audio and RS-232 data signals. The TP-123 will convert computer graphics, audio, and RS-232 inputs to a twisted pair signal, and the TP-124 will convert the twisted pair signal back into computer graphics, audio and RS-232 data signals.
Twisted Pair Connectors - RJ-45 connectors.
Audio Outputs unbalanced Stereo and S/PDIF (24-bit 48KHz) simultaneously (TP-124).
Level (Gain) and EQ (Peaking) Controls (TP-124).
System Range - Up to 100 meters (300 ). Greater distances possible depending on resolution and cable.
Cable UTP (unshielded twisted pair) such as CAT 5.
Power Connect System Only one unit in a system, the transmitter or receiver, needs to be connected to a power source. All the system units must have Power Connect to use this feature.
RS-232 Connect System - The unit can send RS-232 commands on the Twisted Pair cable on top of the video signal. All the system units must have RS-232 Connect to use this feature.
