> Hp agilent 1104A trigger countdown 1-18 ghz module
Hp agilent 1104A trigger countdown 1-18 ghz module
Hewlett-Packard Model 1104A Trigger Countdown
Frequency Range: 1 GHZ to 18 GHZ
Sensitivity: 100 mV or larger and up to 12.4 GHZ with a production of less than 20 pico Seconds of jitter (200 mV required to 18 GHZ)
Output: Center frequency: ~ 100 MHZ at ~ 150 mV.
Input impedance: 50 Ohms. Less than 10% reflection using a 40 ps TDR. Precision
Type N connector input connection.
Pulse at input connection: ~250 mV per step.

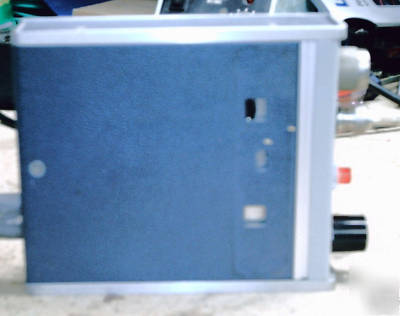

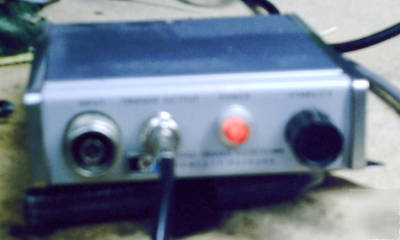

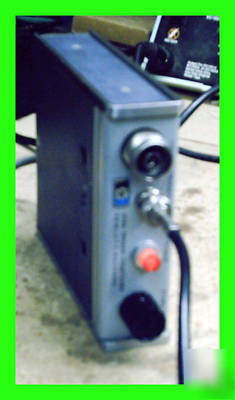

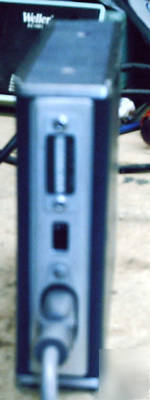

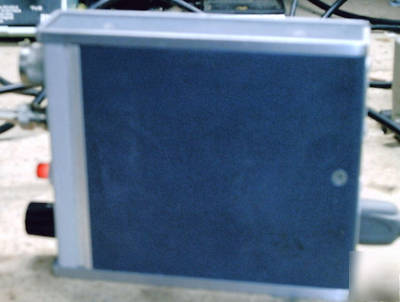

This piece of equipment is used and looks cosmetically OK, 7 of 10 because the prop leg stand is missing (see picture).
I do not have the equipment to do any further tests on this. It probably needs calibration. No manuals, cables (except for power cable) or other parts are included with this piece of equipment.
