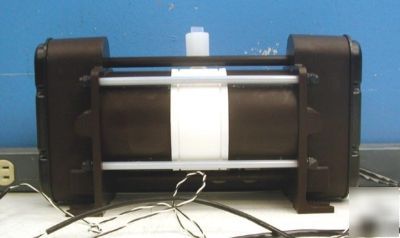

Iwaki bellows pump ff-10BT2
Iwaki America s FF Series pumps are economical solutions for low to medium temperature liquid applications (5 to 100 C). PTFE bellows and liquid end share the same proven design and manufacturing quality as the rest of the F Series family, ensuring high purity and long service life. All metal parts are fully encapsulated.
The FF-10/20CT2 has a PVC housing coated with fluoroplastic, suitable for liquids up to 50 C; a fluoroplastic encapsulated housing allows the FF-10/20BT2 to pump fluids up to 100 C.
Integral PFA tube connections mean there are no crevices or seams where particles can accumulate. A wide variety of fittings can be easily attached.
Intelligent sensor technology is a standard FF series feature: pressure, stroke and speed are optimized, maintaining accurate chemical delivery and extending pump life. Leak detection ensures immediate response to hazards.
FF-10BT2 Maximum discharge capacity 2.6 GPM (10 LPM)
Maximum stroke length 0.7 in. (18mm)
Self-priming ability 3.28 ft. (1m)
Liquid temperature range (5-50 C) 41-212 F
Maximum air supply pressure 43 PSI (3 kg/cm2)
Liquid contacting material PFA/PTFE
Pump connection size PFA tubing
Supply air connection size PT
Maximum air consumption 90NL/min (3.2 CFM)
Ambient temperature 32-104 F (0-40 C)
Manufactures Lead time: 2-3 Months
