> Hewlett packard hp 436A power meter opt. 022
Hewlett packard hp 436A power meter opt. 022

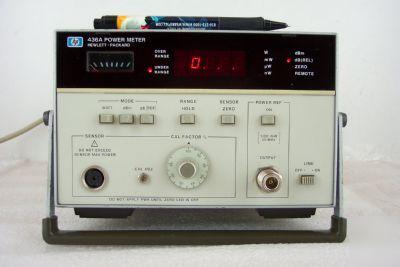

Hewlett Packard HP 436A Power Meter Opt. 022
For Sale is a Good Cosmetic Condition Hewlett Packard HP 436A Power Meter with Option 022. Probe NOT Included.
Option 022: Digital input/output, fully compatible with HP Interface Bus (HP-IB)
** General purpose digital power meter intended for manual and automatic RF and microwave power measurements
** Compatible with the entire series of 8480 power sensors
** Measures either absolute or relative power
** Displays absolute power in either watts or dBm, while relative power is displayed in dB
Frequency Range: 100kHz to 50GHz and 75 to 110GHz (depending on power sensor used)
Power Range: -70dBm to +44dBm (100pW to 25W)(sensor dependent)
Cal Factor: 16-position switch normalizes meter reading to account for calibration factor. Range 85% to 100& in 1% steps
Cal Adj: Front-panel adjustment provides capability to adjust gain in meter to match power sensor in use
Recorder Output: Proportional to indicated power with 1 volt corresponding to full scale and 0.316 volts to -5dB; 1 kohm output impedance, BNC connector
RF Blanking: Open collector TTL; low corresponds to blanking when auto-zero mode is engaged.
Display: Digital display with four digits. 20% over-range capability on all ranges. Analog meter: uncalibrated peaking meter to see fast changes.
