Hp 1141A probe and 1142A probe control & power module

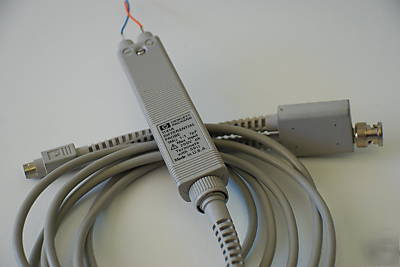

1141A 200 MHz Differential Probe
Compatible with 5000, 6000, 7000 and 9000 Series oscilloscopes
Requires the 1142A probe control and power module
http://www.home.agilent.com/agilent/product.jspx?pn=1141A&NEWCCLC=USeng
Data Sheet: http://www.home.agilent.com/agilent/redirector.jspx?action=obs&nid=-34022.3.00&lc=eng&cc=US&ckey=1000034161%3Aepsg%3Adow&pubno=5968-8153EN<ype=LitStation&ctype=AGILENT_EDITORIAL

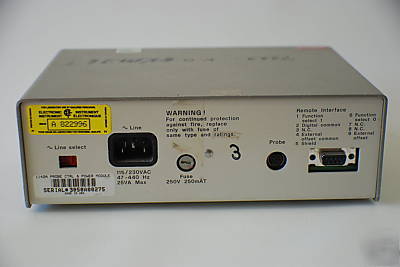

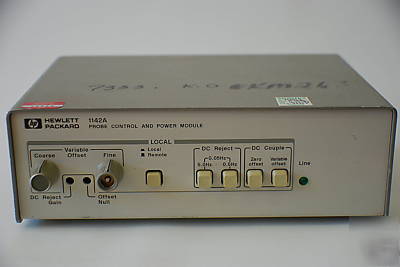

1142A Probe Control and Power Module
Required for operation of Agilent 1141A, 1144A, and 1145A active probes
The Agilent 1142A Probe Control and Power Module can power and control the 1141A Active Differential Probe, 1144A 800 MHz Active Single-ended Probe and the 1145A 750 MHz Active Single-ended Probe.
If the instrument does not have an internal 50-ohm termination, an external termination adapter can be used with a high-impedance output.
http://www.home.agilent.com/agilent/product.jspx?cc=US&lc=eng&pageMode=OV&pid=1000000318%3Aepsg%3Apro&ct=PRODUCT&id=1000000318%3Aepsg%3Apro
