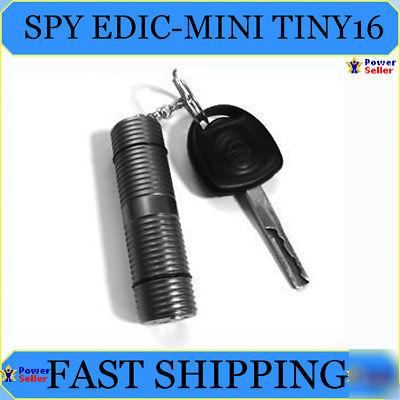

Spy TINY16 B26-300HR edic-mini kgb voice recorder usb
The smallest Edic Mini Tiny16 B26-300Hr (17920 min) Digital Voice Recorder
Stylish, fun, high quality - an excellent accessory for men and women!
Very long autonomous operation. Best Dictaphone. Do not miss! Super sensitivity of the built-in microphone (up to 10-12 m)
As an official representative Telesystems with a full 1-year warranty service is sold only NEW recorders and DVRs.
Tiny16 series is very popular among audio recording professionals as well as amateurs because of its high technical characteristics: 16 bit audio codec, which provides high quality recording, build-in AGC system, which allows to adjust the record mode to the environmental conditions and high sensitive microphone (10-12 m).
This is a great recorder for law enforcement or private investigators as you can hide this easily while you interview or interrogate someone.
Audio recorder EDIC-mini is the smallest DVR by physical size and reach by features, frequently required by professionals. Delayed start, Voice Activation System and access protection along with maximum 22 kHz sample rate and several compression rates make the recorder the choice number one for different exacting applications. The EDIC-mini recorder is able to match many special requirements operating up to 1440 hours :: :042: from a single charge and recording up to 1200 hours without a break. Voice Activation System provides with even longer recording time within the fixed memory volume. And all this is realized in the extremely small size with the simplest control. This tiny recorder is incredible and you have NEVER seen anything like it. Law enforcement grade/military, this pro digital recorder isn't just tiny it is also the highest quality spy recorder available. You can completely palm this and wrap your hand around it. So small, you can place it almost anywhere! Simple one button command, Push to record, push to stop! Works off of tiny long-lasting watch batteries (included) Comes with software and USB connection cable. Unit options are controlled completely through the USB cable and included software. If you want the world's smallest high grade broadcast quality digital audio recorder, this is it!
Low power consumption; Built-in USB interface (exchange speed up to 0.7 Mb/sec); High sensitivity microphone; Wide frequency band; Simplified functionalities (recording only, the recorder does not have a headphones' connector, to play the recordings back you need a computer) and a one control button, the recorder's LED indicates recorder's operating modes
This digital recorder is essential to your business partner. It is indispensable in a business meeting, as well as recording telephone conversations. Many additional features provides the ability to sort the records into different folders, correct the message, record your favorite music in the folder MP3, use a voice recorder as a hard drive in order to transfer data, etc.
Professional miniature digital spy voice recorder make it possible to record even at a considerable distance from the sound source, on a busy street, when the next lot of people talking and extraneous noises.
do not miss your chance - be aware
Tiny 16 recorders have a built-in clock, a calendar, password access protection, Voice Activation System (VAS), a timer to turn start recording at an assigned time, digital watermark, extremely low power consumption and wide frequency band 100-10,000 Hz.
Built-in USB interface with high exchange speed (up to 5.5 MB)
High quality recording due to the 16 bit audio codec
Simplified functionality (recording only, there is not possibility to listen to recordings using headphones; playing back is possible after the recordings have been uploaded onto a computer) and a one button control
Extremely low power consumption
Voice Activation System (VAS)
Timer to start recording at an assigned time
* Dimensions : 75 20 or 2.95x0,79 inch;
* Weight: 20g (without battery)
* Built-in microphone's operating distance: 10-12 m
* Recording duration from 300 to 2,400 hours
* Battery life in record mode (sampling rate 8 K Hz, without compression): 360 hours
* Battery life in record mode with VAS (audio signals below threshold): 1440 hours :: :042:
* In stand-by mode: up to 5 year
* Power supply: battery CR123A.
* USB connector (the rechargeable battery charges while connected to a computerB26 B26
Choose From Four Different Models:
Edic-mini Tiny16 B26- 150 hour - 330$
Edic-mini Tiny16 B26- 300 hour -415$
Edic-mini Tiny16 B26- 600 hour - 555$
Edic-mini Tiny16 B26- 1200 hour - 760$
You can choose these colors:
silver, pink, green, black, blue, yellow
without compression, u-Law, ADPCM 2-and 4-bit
Frequency band recorded signal
The sensitivity of built-in microphone
USB 1.1, the rate of exchange to 5.5Mbod.
Maximum recording time (8 kHz sampling frequency, 2-bit ADPCM)
1 GB - 8 GB (depending on model)
Time of reliable data storage in flash memory more than 10 years
Recording time depending on the model of recorder
The table shows the corresponding index in the model designation recorder, recording time (at a frequency of 8 kHz, 2-bit ADPCM) and capacity of flash-memory
1 Possibility of automatic gain control (AGC) 1
In the DVR is implemented to gain adjustment signal from the microphone. Moreover, to establish a fixed gain, and turn the system automatic gain control (AGC). AGC can automatically change the signal gain microphone, depending on the volume of recorded sound. This allows you to record very loud without distortion (the nearest source of sound) and enhance the quiet (the sound source far) sounds.
In the DVR is the possibility of linear and / or ring record. When the linear recording the number and length of messages is limited only by the amount of free memory. Ring mode allows the recording does not stop recording when the DVR to run out of memory, voice recorder just beginning to replace the old data with new ones. Thus, the memory will always contain the latest data at the time of the recording.
To protect information in the DVR it is possible to set a password to prohibit other users to access content and settings of a voice recorder.
Each entry made my tape recorder has a time stamp and the date of recording, is supplied with "digital signature", which allows you to determine at what exactly DVR to record and whether modification of the recorded file.
Recording can be done automatically, without user intervention. To do this, DVR, there is 2 timer: daily (set start time and end of recording), and a single (specified date, start time and end date-time record).
DVR has a Voice Activating System (VAS - voise activation system), allowing reduced memory consumption (thus increasing the actual record duration) and consumption of energy from the power source. Using this system saves memory during pauses, but the time intervals remain. While unloading of records in the PC long pauses can be restored (in the form of silence), or skipped, depending on your settings.
Voice recorder can operate in a mode of flash-drive makes it suitable for storing and transferring any data.Ability to use voice recorder, for recording messages, and as a flash-disk, and memory allocation for recording messages, and a flash-drive can be specified by the user.
Manage voice recorder is very simple. It carried one button (Start \ stop recording), or switch, depending on the model.
Display modes recorder is carried out using LEDs.
2 Ability to connect an external microphone.
Dictation in this series have the opportunity to work with an external microphone, which improves the recording quality of the voice recorder when placing an acoustically closed place, for example, in the inside pocket of clothing. The microphone allows for enhanced low signals and dampen overly loud 2 times. Gain: / - 6 dB.
With in-box recorder cable is connected to the USB port on your computer. The supplied software isrunning Windows operating systems 98/2000/XP/32 bit operating system Windows Vista, allows you to save the recorded messages as standard sound files and program the various parameters of the voice recorder, voice recorder to use as a flash-drive to store and transfer files from the volume 1GB to 8GB, depending on the model.
*Minimum System Requirements: Windows 98/2000/32 bit operating system Windows Vista; Pentium II 333 MHz; 32 MB of RAM.
Note: 64 bit Windows Vista and Win7 until our software is not compatible!
1 x Digital voice recorder B26
1 x Operation manual for DVR, with the supplement enclosed
Note we are not responsible for the duties or taxes your country may impose nor can we predict what those fees are
* absence of Telesystems' stamp on the product
All the questions concerned returning and exchanging the product, are solved in accordance with the Consumer protection laws. Warning! The guarantee does not cover batteries. In case of return for warranty service please kindly contact us for the return instructions
* We are an electronic, phone free organization (with real people to answer emails).
