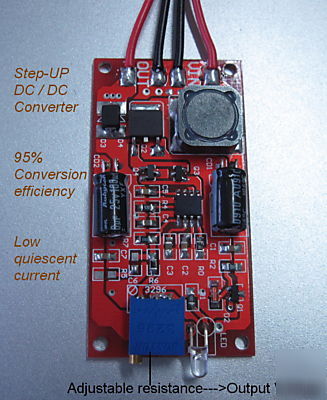

Dc power volt regulator converter in 8~17V out 15~20V
95% coversion efficiency Step-UP DC / DC converter
* This is a professional adjustable Step UP DC-DC Voltage Vonverter
* Dimension: 58 x 30 x 7.8 mm ( 2.3x1.2x0.3 inch L*W*H )
* Output Voltage: 15 - 20 V ( adjustable )
* Maximum Current: 2 A ( 40W )
* efficiency: 93 - 95 % ( very HIGH, low heat power )
* Wire according to drawing. Do not reverse polarity & short-circuited
I always want to have a more efficient DC-DC buck circuit, so I am seeking for a better IC. Until now, I have found it, and each of its
components is carefully selected: the core component is made in the U.S., the high-frequency low-resistance capacitances made by Sanyo (Japan) are
used as the input/output electrolytic capacitor, the inductance made in Taiwan, the ceramic capacitor is made by Fenghua, and the chip resistor is made by Uniroyal (Taiwan).
