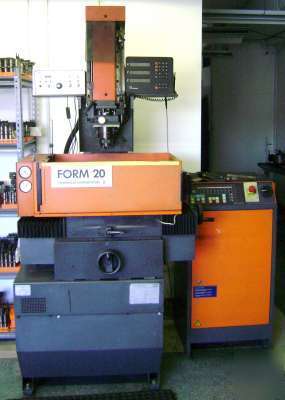

Charmilles form 20 ram type edm 3 axis dro

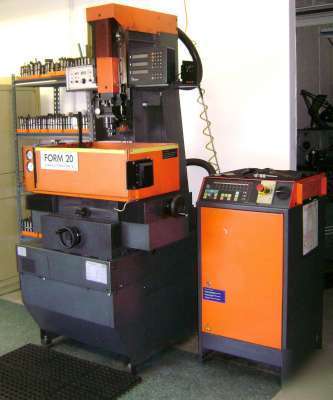

CHARMILLES (MADE IN SWITZERLAND) RAM TYPE EDM

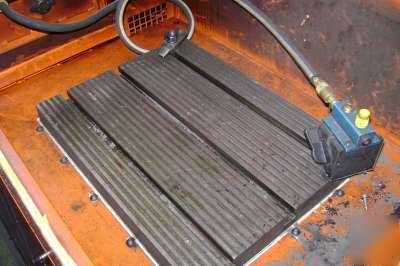

WORK TABLE SIZE ...................... 15.8" x 11.8"
TABLE TRAVEL ......................... 11.8" x 9.8
WORTANK EFFECTIVE DIMS. ........ 23.7" x 15.8" x 7.1"H
PLATEN TO TABLE ...................... 13.2" MAX.
RAM TRAVEL ........................... 9.8"
MAX. WORKPIECE WEIGHT ................ 440 LBS.
RESEVOIR CAPACITY .................... 200 LITERS
MACHINE TOOL DIMS. .............. 42"L-R x 48"D x 83"H
CONTROL/GENERATOR DIMS. ............. 23" x 23" X 44"H
SIDE BY SIDE, MACHINE & CONTROL/GENERATOR .... 78"L-R
APPROX. WEIGHT............................. 1,700 LBS

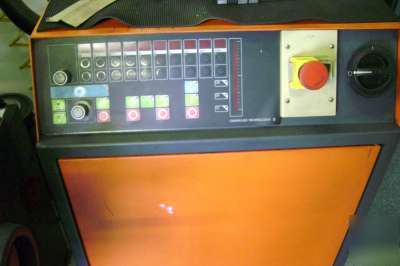

CHARMILLES PROGRAMMABLE CONTROL (CNC Z-AXIS)
MICRO II FINISHING MODULE (OPTION)

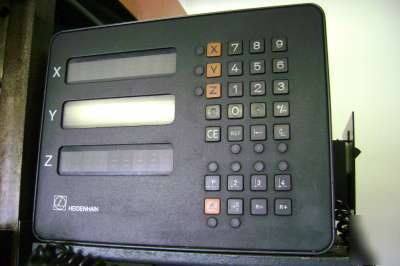

3-AXIS DIGITAL READOUT DISPLAY

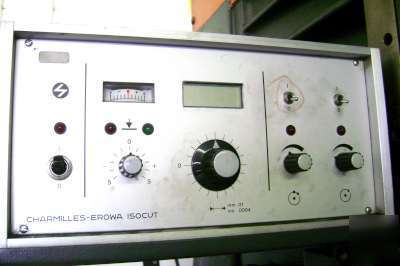

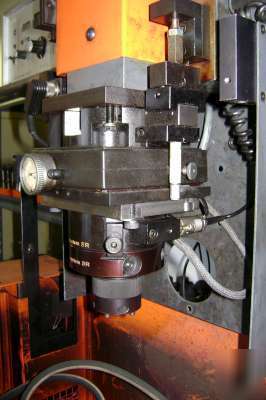

3 R holder system + Erowa ISOCUT

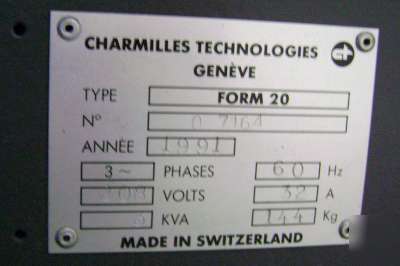

220-3/60 CYCLE/208 VOLTS, 3 KVA ELECTRICS
