> OPA4684, quad, low-power, current feedback op amp (5)

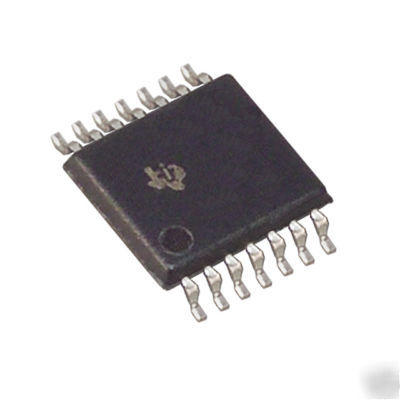

OPA4684, quad, low-power, current feedback op amp (5)
Alert me to changes to this product
The OPA4684 s low 6.8mA supply current is precisely trimmed at 25 C. This trim, along with low shift over temperature and supply voltage, gives a very robust design over a wide range of operating conditions.
* MINIMAL BANDWIDTH CHANGE VERSUS GAIN
* 170MHz BANDWIDTH AT G = +2
* >120MHz BANDWIDTH TO GAIN > +10
* LOW DISTORTION: < 78dBc at 5MHz
* HIGH OUTPUT CURRENT: 120mA
* SINGLE +5V TO +12V SUPPLY OPERATION
* DUAL 2.5 TO 6.0V SUPPLY OPERATION
* LOW SUPPLY CURRENT: 6.8mA Total
* LOW-POWER BROADCAST VIDEO DRIVERS
* SAW FILTER HIGH-GAIN POST AMPLIFIERS
* MULTICHANNEL SUMMING AMPLIFIERS
* WIDEBAND DIFFERENTIAL CHANNELS
* ANALOG-TO-DIGITAL CONVERTERS INPUT DRIVERS
* MULTIPLE POLE ACTIVE FILTERS
Quantity 5 ..... New Parts !!!!!
