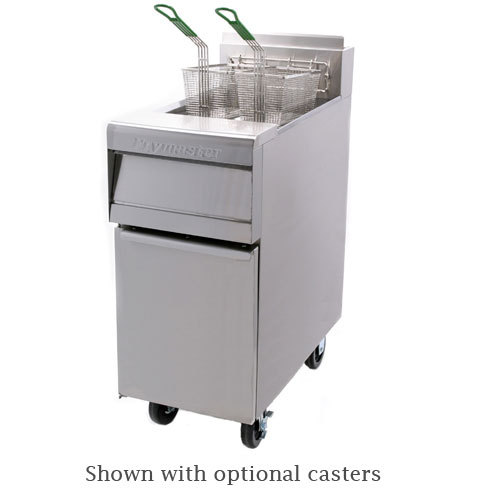

Frymaster MJ35-sd fryer, heavy duty, 30-40 lb. oil capa
Fryer, Heavy Duty, 30-40 Lb. Oil Capacity, Gas, 110,000 BTU, Open Frypot
2 years parts and labor. Lifetime warranty on fry pot. -view pdf
Fryer, Gas, heavy duty restaurant design, 30 - 40 lb. fat capacity, millivolt temp. control circuit, stainless pot and door, enamel cabinet, 110,000 BTU
* The MJ35 has a minimum 30-lb. and maximum 40-lb. oil capacity. The frying area is 12 x 15 in. This 110,000 Btu/hr. model is specifically designed for all-purpose frying and produces 65 lbs. of french fries per hour - frozen to done. The exclusive 1o action thermostat anticipates rapid rate of temperature rise, reducing temperature overshoot, extending shortening life and producing a more uniformly-cooked product. Centerline thermostat
* mounting permits quick sensing (7-10 seconds) of cold food placed in either basket. Unique Master Jet burners have no burner tube radiants
* to burn out. No burner cleaning or air shutter adjustment is required.
* The open frypot has a large heat transfer area to fry more product per load. The open-pot design has no hard-to-clean tubes. Every inch of the frypot and cold zone can be cleaned and wiped down by hand.
* The large cold zone catches crumbs and sediment from the frying area. These particles are trapped in the cold zone where they do not carbonize, contaminate oil or cling to fried products. The standard front flush feature deflects oil out around the pot, moving sediment to the front drain valve for easy and thorough removal.
* The MJ35 and MJ35G models use a millivolt temperature control circuit.
* Durable centerline thermostat, 7- to 10- second response to loads, 1 degree anticipating action, reduced temperature overshoot
* Master Jet burner, no burner tube radiants to burn out, no cleaning or
* Rounded corners for easy-to-clean Euro look
* Optional casters sold separately
