> Resistor fixed film 5905-00-774-3599 2.6K wire lead 20

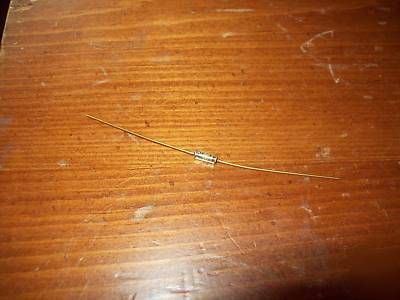

Resistor fixed film 5905-00-774-3599 2.6K wire lead 20
Technical Characteristics ( ILs ) 5905-00-774-3599
GOVERNMENT SPECIFICATION TEST TEST DATA DOCUMENT
SR-1 NON-DEFINITIVE GOVERNMENT
SPEC/STD REFERENCE MIL-R-55182/1
SPEC/STD REFERENCE RNR55C2671BS
PKWT III UNPACKAGED UNIT WEIGHT 0.3 GRAMS
CBME (NON-CORE DATA) CUBIC MEASURE 0.002 CUBIC INCHES
AEFB POWER DISSIPATION RATING IN WATTS 0.125 FREE AIR
ADAQ BODY LENGTH 0.250 INCHES NOMINAL
ABPM BODY DIAMETER 0.109 INCHES NOMINAL
ABJT TERMINAL LENGTH 1.500 INCHES NOMINAL
AARH RELIABILITY FAILURE RATE LEVEL IN PERCENT 0.001
AARG RELIABILITY INDICATOR ESTABLISHED
AAQZ INCLOSURE METHOD HERMETICALLY SEALED
AAQH TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS -55.0 TO 175.0
AAQG AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER 175.0
AAQF AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER 125.0
AAPQ RESISTANCE TOLERANCE IN PERCENT -0.100 TO 0.100
AAPP ELECTRICAL RESISTANCE 2.670 KILOHMS
AAPE TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS -50.0 TO 50.0
