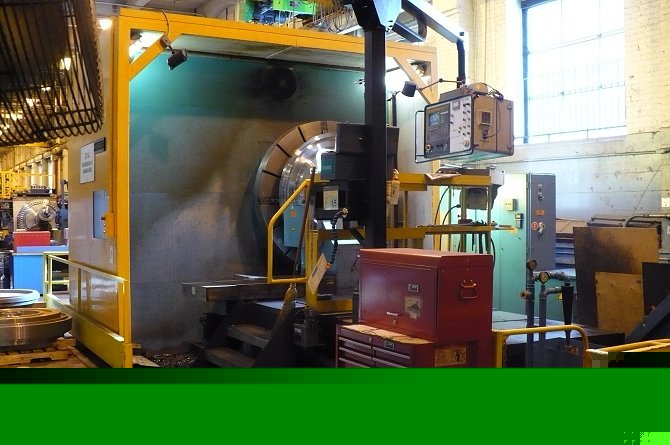

> Ravensburg model: kh 100-cnc
Ravensburg model: kh 100-cnc
TURNING DIAMETER OVER BED............... 78.75"
TURNING DIAMETER OVER CARRIAGE.......... 59"
FACEPLATE DIAMETER...................... 70"
MAIN SPINDLE BORE....................... 5.9"
CARRIAGE TRAVERSE (Z-AXIS).............. 78"
CROSS SLIDE TRAVERSE (X-AXIS)........... 57"
FEEDS X & Z AXIS........................ 0.04 TO 216 IPM / 0.002 TO 2 IRP
SPINDLE SPEEDS (FOUR RANGES)............ 1 TO 300 RPM
SPINDLE MOTOR........................... 90 HP
TORQUE AT FACEPLATE..................... 29,500 FT/LB
ADMISSIBLE MAIN CUTTING FORCE FOR TOOL HOLDER.. 17,600 FT/LBS
WIDTH OF BED............................ 55"
HEIGHT OF BED........................... 25.6"
ADMISSIBLE WORKPIECE WEIGHT UNSUPPORTED. 15,400 LBS
MACHINE WEIGHT.......................... 53,000 LBS
* OPERATING VOLTAGE 460V / 60 HZ
INSPECT UNDER POWER FOR A FEW MORE DAYS, USED FOR AEROSPACE TURBINES
MUST MOVE, NEW MACHINE ON ITS WAY IN
