New lincoln ac 225 welder for same price as used
Following are specifications I found from a Lincoln brochure. Feel free to email with any questions.

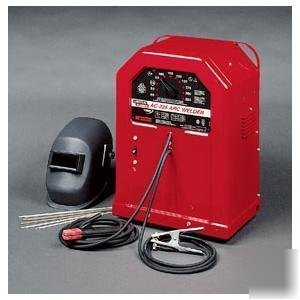

Lincoln Electric K1170 AC-225 Stick Welder
The Lincoln Electric K1170 AC-225 compact stick welder has a broad welding amperage range of 40-225 amps. It produces an extremely smooth AC arc for welding a wide variety of materials including carbon, low alloy, and stainless steels as well as cast iron. Metals 16 gauge and heavier can be easily stick welded with the AC-225. The K1170 AC-225 is also used for cutting and piercing holes in steel.
Easy to install. Comes with attached 6 ft. (1.8m) input power cable and NEMA 6-50P plug
Easy to operate. Full range 40-225 amp selector switch quickly sets the welding current and ensures a uniform arc each and every time you weld
Traditional design provides long-life and low cost operation
Smooth arc makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes
225 amp AC output is enough for 3/16" (4.8mm) diameter general purpose mild steel electrodes and 5/32" (4.0mm) sizes of other electrodes
Optional carbon arc torch for brazing and soldering applications, for heating rusty nuts for easier removal, and for bending or straightening metal
Fan-cooled for extra thermal protection
Vermin resistant mesh bottom keeps rodents and pests out of the case
Powder paint finish for increased durability
UL listed and CSA approved (60 Hz only)
3 year warranty on parts and labor
Manufactured under a quality system certified to ISO 9001 requirements
Insulated electrode holder and cable
Heavy duty work clamp and cable
Lightweight head shield with lenses
Input cable with attached plug
