Pulse generator hp 8015A and 8082A "mint condition"
These equipments are guaranteed to be in working order.

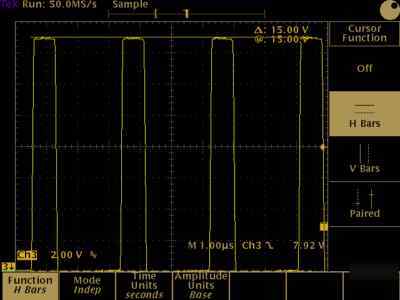

The HP 8015A has two independant voltages adj. +/- 16 volts output + 1 TTL output. Ultra clean and in good working condition. First picture show plot for A+B at 15 volts pk-pk.
* The HP 8015A offer B delay mode in addition to variability of all pulse parameters and is ideal for many testing purposes. A + B mode gives an output of 30 volt maximum. Its frequency range is 1 Hz to 50 MHz, impedance is 50 ohms or 1 kohm.

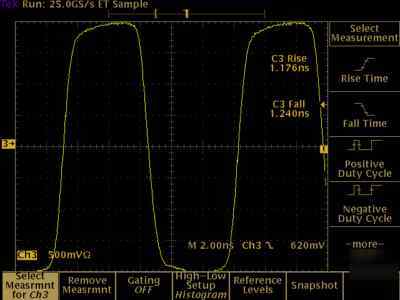

The HP 8082A. Ultra clean (MINT) and in good working condition. This 8082A have an Intel calibration sticker ended 2008. Second picture show plot for rise and fall time of 1nS with some bandwidth limitation from my 500 MHz scope.
* Leading and trailing edge transition times are independently adjustable from <1 ns to 0.5 ms in all period ranges
* Separate normal and complimentary outputs providing up to +/- 5 V, hi-speed TTL and ECL circuitry can be driven with the 8082A
* Adjustable delay (2 ns to 0.5 ms), double pulse, variable pulse width (<2 ns to 0.5 ms) and square wave output function are provided
Can be use in combo (Ext Trig Width) like for generating 1 Herzt pulse with 1 nS rise time pulse...
