Smokemaster model c-12 air cleaner

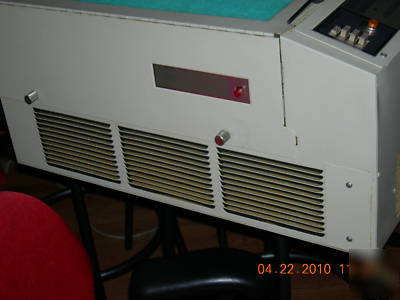

The C-12 is a self-contained surface mounted electronic air cleaner that easily mounts to a wall or ceiling. Three speed controller regulates airflow up to 1250 cfm.
The C12's high efficiency electrostatic cells and impregnated carbon filter captures both particulate and gaseous contaminants. The 3-speed fan offers quiet and efficient air cleaning with airflow from 800 cfm to 1250 cfm for any commercial environment. It is particularly effective for odors, tobacco smoke, pollen, dust, vapors and many other irritants.
The Smokemaster is equipped with lightweight (9 1/2 lbs.) two stage cells which provide air cleaning efficiency that can trap particles so small 7000 of them would stretch across a dot (.). No periodical mechanical services or the purchase of tools are required, as the cells have no moving parts.
Three-Speed Control: Low 800cfm / Medium l050cfm / High l250cfm
Electronic Cells Two electronic cells remove easily with attached grip handles. Voltage doubler circuit provides more efficient air cleaning with a compact cell.
Hinged Access Door Allows easy access to components for periodic cell and prefilter cleaning.
Safety interlock discharges all power when door is opened.
Color Options Ivory, Woodgrain, Black
Removable Prefilters and Grille Metal mesh prefilters catch larger particles before entering the electronic cells.

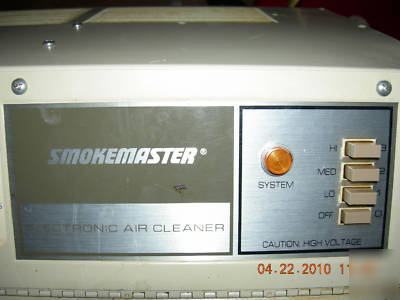

System Indicator Lamp Monitors the electrical output automatically indicating any system malfunction.
Built-in test button assures collector performance.
Optional Accessories ; Wash kit, Wall Mounting Kit, Remote 3-Speed Switch Plate Assembly
Serviceability Components simply unplug for replacement in event service is necessary.
Air cleaner is easily mounted on ceiling or wall.
Electrical Ratings Voltage and Frequency - 120V ac 60 Hz
Current and Power Consumption - Low Speed 2.4A, Med. Speed 2.7A, High Speed, 3.3A
Effectively removes airborne particles down to 0.01 micron with up to 97% efficiency. (1 micron = 1/25,400th inch)
The Smokemaster C-12 can be easily mounted on the ceiling or wall and plugs into a regular 120 volt outlet. It's best location is a position nearest to the concentration of smoke and dirt producing activities. A qualified representative will give you the best advise for your requirements with regards to capacity and sizing.
Lightweight all aluminum prefilters and cells are quickly and easily cleansed by soaking them in any conventional wash container. Cleaning intervals must be determined by pollution density in the area being cleaned.
Primary Filter Collection Area
