> Variable dc power supply 0-24V (2A) diy kit (1 channel)
Variable dc power supply 0-24V (2A) diy kit (1 channel)

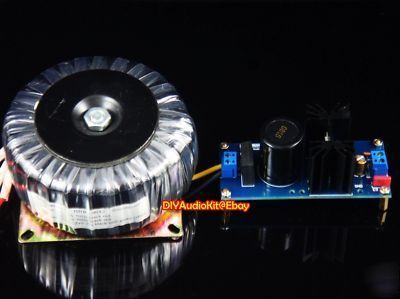

1. Variable voltage regulator DIY Kit
2. Toroidal power transformer T30
1. Delivery current up to 2A for each channel, variable output voltage from 0-24VDC depending of the power transformers.
2. Connect modules in series or parallel to provide either higher output voltage range or higher output current.
3. Use of low dropout regulator LM1084 with line regulation of 0.015% typica, load regulation of 0.1% typical.Ripple rejection of 75dB and RMS output noise 0.003%.
4. Use of Nichicon capacitor and Dale resistors.
5. PCB thickness 2.4mm and 2oz copper, dimension: 99.5mm x 43mm
Two items can be configured as positive and negative power supply or two independent power supply.
