Lennox 16H80 time delay

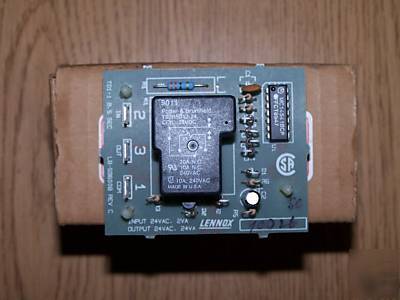

Lennox 24 Volt Time Delay Circuit Board used on many Models:
New Upgraded Time Delay Replacement Control can be set to many on times, 3 wire hook up. Normally set time 5 minutes.
Universal AC Voltage Operation.
InputControl Voltage: 18-240 VACFrequency: 50/60 HzPower Consumption: 3 watts max.OutputMaximum Rating: 1 ampMinimum Rating: 40mAIn-Rush: 10 ampsVoltage Drop: 2.5 V maximum @ 1.5 ampsLeakage Current: 5 ma max. @ 240 VAC Installation 1.Disconnect Power 2. Connect terminals in series with the device. 3. Reapply power and check operation. for complete diagrams, see installation guide: Timing Mode of OperationWhen power is applied to the input with the initiate switch open, the load will remain energized indefinitely. Timing begins upon closure of the initiate or pressure switch. After the delay is complete, the load is de-energized. When the initiate switch opens, before or after the delay, the control is reset.
