Pc interface for dc motor control- dc motor controller

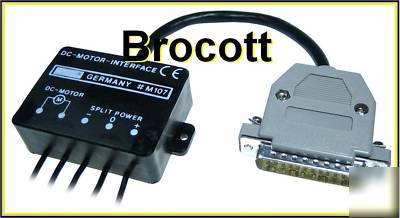

Computer Interfaced DC Motor Controller
Computer Interface DC Motor Controller
For controlling a DC brush motor from 5...24VDC, max. 2A.
A double power pack (split power supply) is required for the current supply. For connection to a standard PC LPT port. The motor may either be controlled by hand with the computer keyboard (number of revolutions, running direction) or via a program with an automatic program flow which has been pre-written. The supplied software if fully programmable.
By means of an interface switch (M108) it is possible to operate up to 4 motors at the same time via individual interface modules respectively. Thus complex motions for various applications can be achieved.
* Operating voltage: 5...24VDC
* Switching current: max. 2A
* Dimensions: approx. 60 x 45 x 21 mm
