> Makino A55E cnc horizontal machining center 2001
Makino A55E cnc horizontal machining center 2001
MAKINO A55e HIGH SPEED CNC HORIZONTAL MACHINING CENTER
New 2001, S/N 0125, Stock # K13087 EQUIPPED WITH:

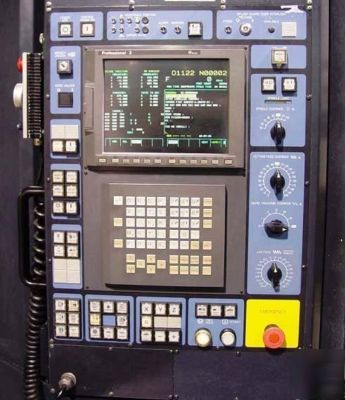

Fanuc Professional 3 CNC Control w/Color CRT (Fanuc 16i), Multi-Part
Program Storage, (2) 15.7" x 15.7" Full Contouring 4th Axis Pallets,
Heavy Duty 14,000 RPM Cat-40 Spindle, Tool Probe, Tool Life Monitor, Overhead
Hydraulic Fixture Clamping, Spindle Load Monitor, Spindle Chiller,
Rigid Tapping, 40 Station Automatic Tool Changer, Chip Conveyor, Thru
Spindle Coolant. CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ........................... 22.05"
Vertical Travel (Y-Axis) ............................... 22.05"
Spindle Travel (Z-Axis) ................................ 23.6"
Pallet Dimensions ...................................... 15.7"x15.7"
Maximum Pallet Load .................................... 1100 LBS
Number of Pallets ...................................... 2
Number of Index Positions............................... 360,000
Feed Rate, All Axes .................................... 3307 IPM
Rapid Traverse, All Axes ............................... 3307 IPM
Spindle Horsepower...................................... 25 HP
Spindle Speed Range..................................... 50 - 14000 RPM
Spindle Taper .......................................... Cat-40
Number of Tool Stations ................................ 40
Electrics .............................................. 460/3/60
Approximate Machine Dimensions ......................... 183" x 75"
Approximate Machine Height.............................. 111"
Approximate Machine Weight.............................. 18,900 LBS CONDITION: Machine is from a Large Well Maintained ISO9002 Shop!
Appears to be in Excellent Condition !
