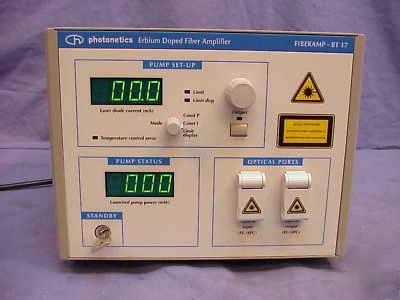

Gn nettest photonetics fiberamp BT17 erbium amplifier
Removed from a working lab. We do not have the ability to test it further.
Sold with a 7 Day Right of Inspection if not happy.
FIBERAMP-BT 17 is a high-performance Erbium-Doped Fiber Amplifier that operates in the 1.55um
spectral window. It features a single-pump configuration that delivers an outstanding high output power
of +17 dBm of saturated output. Its co-propagating configuration (using a 980 nm pump diode) provides
a low 4.5dB (typ.) noise figure and is ideally suited as a source booster. FIBERAMP-BT 17 can operate
either in "Constant Power Mode" or "Constant Current Mode". Either pump power or current is user
programmable via the IEEE488 interface or by using the front panel dials.
Wavelength Range: 1525 - 1560 nm
Benchtop or Rackmount Chassis
Small Signal Gain: >25dB (30 dB typ.)
