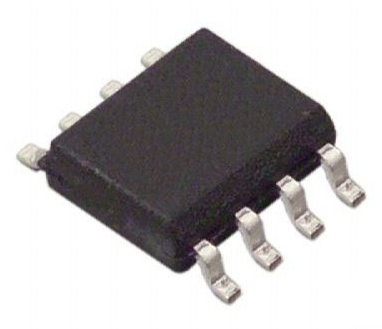

Ic chips: AD623BR single/dual instrumentation op amp
- Higher Performance than Discrete Design
- Single and Dual Supply Operation
- Input Voltage Range Extends 150 mV Below Ground
- Low Power, 575 mA Max Supply Current
- Gain Set with One External Resistor
Gain Range 1 (No Resistor) to 1,000
- 100 V Max Input Offset Voltage
- 1 V/ C Max Input Offset Drift
- 25 nA Max Input Bias Current
- 35 nV/vHz RTI Noise @ 1 kHz (G = 1)
- 90 dB Min CMRR (G = 10); 84 dB Min CMRR (G = 5)
(@ 60 Hz, 1K Source Imbalance)
- 20 s Settling Time to 0.01% (G = 10)
- Low Power Medical Instrumentation
