Sato CL412E thermal transfer label printers w/warranty
Sato CL412e 305DPI Thermal Transfer Label Printers with Warranty

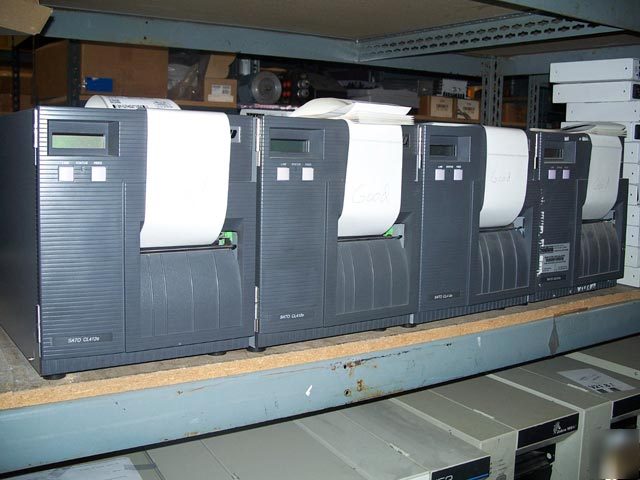

We tested each of these and they all work great. Good printheads. Not new but nice, real nice. These are as returned at lease end, straight from corporate America.
The manufacturers site is HERE. The manual is HERE. The datasheet is HERE.
The test label, I can't see any defects. The printheads all look good.
Sato CL412e Performance Plus Printer
* Industry Leading Throughput
* New Generation RISC Microprocessor
* 203/305 dpi Print Resolution
* Web Based Wireless Printer Server
* Downloaded TrueType Fonts
* 21 Bar Code Symbologies (incl. 2-D)
* Memory: 18 MB Standard and 22 MB Optional
Throughput - The Sato CL412e set new benchmarks in label throughput. A new generation RISC processor provides high performance in label production even when printing directly from standard Windows applications.
Memory - The Sato CL412e printers come with a full 18 MB of on-board memory STANDARD! Enough memory for storing multiple fonts, graphics, formats etc. without the need for optional 4 MB of Flash memory or an additional 16 MB of PCMCIA memory may be added.
Windows Compatible - Users still have the option of producing high-quality labels by using either SATO's native command language (JCL) or quality label design and production software such as SATO's Label Wizard. Now, the ability to easily and efficiently produce labels direct from Windows applications such as WORD, EXCEL, ACCESS, etc. is also an option for the Sato CL412e.
Interface Connections - Choose from one of SATO's standard high-speed, bi-directional Plug-In Interface Modules: IEEE1284 Parallel, or High-Speed Serial (up to 57.6k bps). Also available for the Sato CL412e are optional Plug-In Interface Modules for Twinax/Coax and Ethernet (10/100BaseT) and RS422/485.
Min. 0.87" (22mm) W x 0.24" (6mm) L
18 MB Standard with RAM Storage for special characters
Roll or fan-fold die cut labels, plain paper face stock. Tag stock with punched feed slot for "see through" sensing. Continuous stock using software control.
Max. Roll Diameter: 8.6" (218mm) - Wound Face-In
Roll Core Diameter: 1.5" or 3" (38mm or 76mm)
Max. 4.4" (111mm) W x 1345' (410m) L - Coated Side In
Movable transmissive sensor for die cut labels and tags. Movable reflective sensor for use with preprinted sensing marks. Automatic or programmable setting of top form.
* RS232 (9,600 to 57,600 bps)
* RS422/485 (up to 19.2k bps)
Elementary: UPC-A/E, EAN-8/13, Code39, Code93, Code128, Codabar, MSI, Bookland, Industrial 2/5, Interleaved 2/5, Matrix 2/5, Postnet, UCC/EAN 128,
2-Dimensional: PDF417, Micro PDF, Truncated PDF, Maxicode, Data Matrix, QR Code
2:1, 3:1, 5:2 ratio and programmable height
Human Readable Fonts for Sato CL412:
12 proportional, mono-spaced fonts and an outline fonts (Code table 858). Internal CG Triumvirate and CG Times fonts plus downloaded TrueType fonts. Scalable from 8 to 72 points.
360 rotation of bar codes and text; character expansion horizontally and vertically; sequential numbering; form overlay for high-speed editing of complex formats.
Graphic Support for Sato CL412:
On the back, a serial and an ext plug. I understand this can take ethernet but it's not installed. An option.
