New martin yale autofolder 1601X w/extended warranty
Martin Yale 1601 / 1601x Autofolder NEW!
Folds over 9000 sheets per hr. , fast jam free
Why choose this folder: Versatile folding machine performs 8 basic folds on letter and legal size paper. It has a jam detector and auto shut off. Conveyor output is rare at this price.
How easy!: Adjust the 2 plates for your fold. Load up to 150 sheets in the hopper and walk away-that easy!!. It will fold up to 150 sheets per minute. Or use the slot to manually fold up to 4 sheets at a time ( rare )
It is called the Ease of Use for a reason. It is easy to set the folds by moving the stop on each fold plate to a clearly marked spot and tightening a thumb screw. The hopper holds up to 150 sheets, or you can feed up to 4 sheets at a time together manually, even with staples. It can handle up to legal size paper in 7 different folds: letter, zig-zag, half, double parallel (fold in half, then in half again in the same direction) and french (fold in half long way and put through again from the side). It is small, weighs 38 lbs. and is easy to set up and use.
To begin, you set the type of fold by moving the 2 knobs that set the fold stops on the front and back removable plates. For letter and legal size paper, the stops are marked for the 5 types of folds. For automatic operation, you place up to 150 sheets of paper in the hopper, turn it on and press the start button. The sheets will be folded in a few minutes and neatly stacked by the conveyor below. It will automatically shut off when done. If a jam is detected, (a sheet does not make it through in 2 seconds), it shuts off, making the clearing process much easier.
* High speed machine automatically feeds and folds a stack of documents up to 8 1/2" x 14"
* Operates at a speed of up to 9,000 8 1/2" X 11" sheets per hour

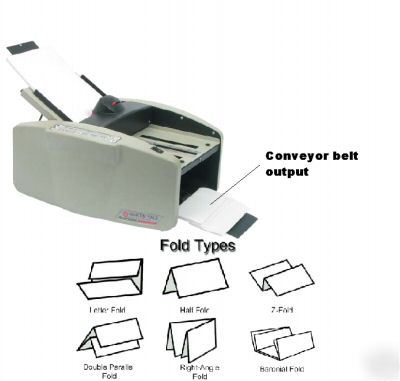

* Adjusts to fold documents into letter fold, half fold, double parallel fold, z-fold, and right-angle
* Handles sheet sizes from 3 1/2" x 5" to 8 1/2" x 14"
Speed: up to 9,000 (8 1/2" x 11") sheets per hour
Dimensions: 20.6" x 14.2" x 17.2"
