New vat 010 mini uhv gate valve 2-3/4" conflat flanges

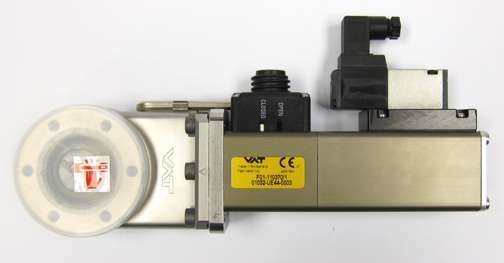

This is a VAT Series 010 "Mini UHV" stainless steel gate valve with 2-3/4" Conflat flanges. It appears to be new.
This valve did not come to us in sealed factory packaging, but did have VAT protective caps in place on the flanges. It appears to be in immaculate condition, including flange sealing surfaces. The port where compressed air would be introduced does not appear to ever have had a fitting installed. We find no clues that would indicate that this valve has ever been installed on a system.
The MONOVAT style of gate seal allows this valve to be very compact compared to other designs; flange-to-flange distance is only 1.38" (35 mm).
* 2-3/4" Conflat-style flanges
* flanges have UNF tapped holes (1/4-28 thread)
* Viton MONOVAT style gate seal
* double acting pneumatic cylinder (air-to-open, air-to-close)
* 110 VAC solenoid control valve is installed on valve
* position indicator switches
* mating electrical connector included for position indication switches
* visual position indication
More detailed specifications for this valve are available from the VAT web site. If such information is of interest to you, and you have difficulty locating it, then please contact us for assistance.
