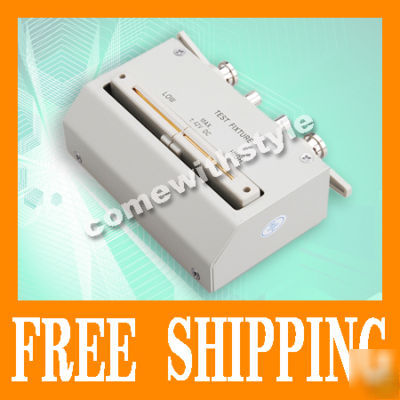

4-terminal test fixture hp 4284 4285A smd component
This test fixture is designed for impedance
evaluations of SMD. The minimum SMD size that this fixture is adapted to evaluate is 1.6L x 0.8W (mm)
Maximum Voltage: 40 V peak max (AC+DC)
Operating Temperature: 0 C to 55 C
Terminal Connector: 4-Terminal Pair, BNC
DUT Connection: 2-Terminal
Sell for $289 and up at most retailers !
