New johnson level & tool 26X automatic level -

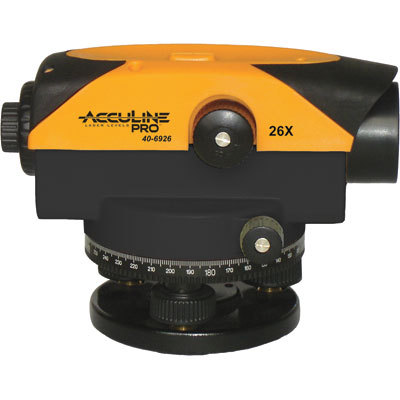

Johnson Level & Tool 26X Automatic Level -New
Automatic Level has a top-mounted optical sight for quick reference, 360 horizontal circle and fine adjustment knobs on left and right sides with endless horizontal drive. Water and dust resistant for use in most weather conditions. Application: Construction, concrete work, deck building, landscaping, Range (ft.): Up to 350, Accuracy: 1/16in. at 200ft., Kit Includes: Level, case, manual Wire hung, magnetically dampened compensator Large, easy to-use focusing knob Penta prism for bubble viewing 1:100 stadia for distance estimation Telescope: Erect Magnification: 26X Leveling accuracy: 1/16in./200 ft. ( 1.5mm/60m) Working range: Up to 350ft. (100m) Clear objective aperture: 40 mm Field of view: 1 30ft. Shortest focusing distance: 0.315in. (0.8m) Stadia ratio: 100 Stadia addition: 0 Sensitivity of bubble: 8ft. (2mm) Circle graduation: 1 Standard deviation for 1km double-run leveling: 0.689in. (1.75mm) Compensator working range: 15ft. Compensator setting accuracy: 0.8in. Dimensions 7.520in. x 5.197in. x 5.394in. (191 x 132 x 137mm Center screw thread: 5/8in.-11
