New hanna portable ph meter hi 9224
New HANNA Portable pH Meter HI 9224
Breakthrough in Technology: Hard Copy of pH and Temperature for ISO and Quality Requirements
This meter memorizes the values for pH 4.01, 7.01, and 10.01 and uses automatic buffer recognition.
Type-belt printer uses regular, non-fading paper. Inexpensive replacement paper is also available (Replacement part# HI 710034).
HI 9224 delivers many hours of use with 5 minute printing intervals. The meter uses common AA batteries.
A 12VDC power supply can also be used to power the meter.
HI 9224 is the first portable, printing pH meter in the world. Housed in a rugged, hand-held casing with a splash-proof keyboard and weighing less than 500 grams (1 pound), this meter can be carried anywhere in the lab or in the field for on-the-spot recording. Recording interval is set at 5 minutes.
The printout supplies the user with the interval, lot #, and temperature and pH value. Measurements can be performed with lab grade precision in the field as well as in the laboratory without compromising accuracy ( 0.01 pH and 0.5 C). Three memorized buffers (pH 4.01, 7.01, 10.01) with automatic buffer recognition make calibration simple. In addition, calibration is reduced to a push-button operation.
For long term field or lab applications, the HI 9224 can be connected to a 12VDC battery recharger. This flexibility will allow your testing to continue even if there is a power failure. By using advanced technology and state-of-the-art electronics Hanna offers the HI 9224 at a fraction of the cost of a typical recorder.
pH Calibration Automatic 1 or 2 points with 3 memorized standard buffers
Temp. Compensation Automatic from -10 to 100 C (14 to 212 F or fixed at 25 C (77 C) without temperature probe (for HI 9224 only)
Electrode HI 1230B combination gel HI 1217D combination gel pH electrode BNC+1m (3.3 ) pH electrode DIN+1m (3.3 ) cable (included) cable (included)
Temperature Probe HI 76692/W with 1m (3.3 ) - screened cable (included)
Printer Low power impact type-belt, 14 characters per line; 38 mm plain paper (HI 710034)
Power Supply 4 x 1.5V AA batteries / 250 hours approx continuous use
Auto-off after 5 minutes. Power socket for 12 VDC
Environment 0 to 50 C (32 to 122 F); RH 95%
Dimensions 220 x 82 x 66 mm (8.7 x 3.2 x 2.6 )
Weight 500 g (18 oz.); Kit: 1.4 Kg (3.1 lb.)

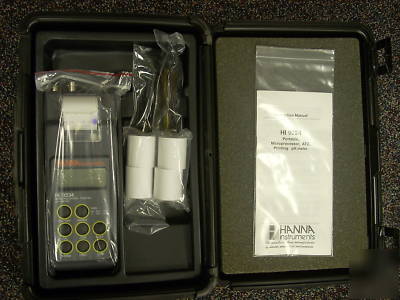

The Hanna HI 9224 Portable pH Merter comes complete with:
HI 1230B combination, gel-filled pH electrode with BNC
1m (3.3 ) cable, HI 7669/2W temp. probe with 1m(3.3 ) cable,
5 paper rolls and 4x1.5V AA batteries in a rugged carrying case!
