Ge / krautkramer dms 2 thickness gage

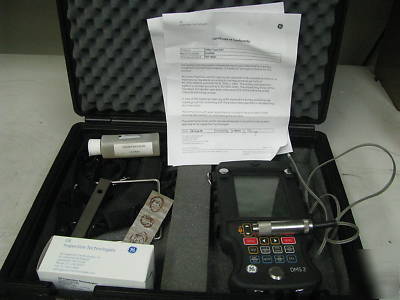

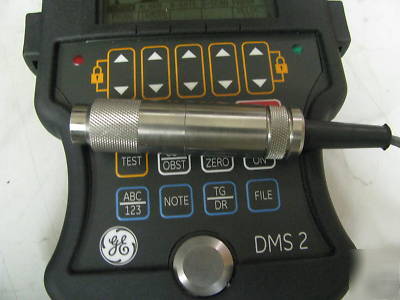

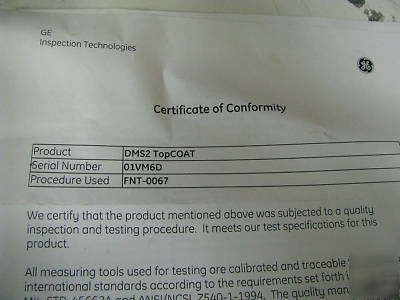

GE / Krautkramer DMS 2 Thickness gage. This unit comes as shown in the photo. It is in good working and cosmetic condition. The unit was calibrated by GE in August of 2008 (paperwork included). The probe is a Topcoat TC-560.
http:// /download/manuals/ut/thickness_gauge/021-002-151_Rev8-dms2.pdf
The DMS 2 is a revolutionary A-Scan Digital Thickness gage/Data Recorder incorporating beneficial performance features, ease of use, and Krautkramer's patented (US Pat. 6,035,717) TopCOAT Technology and Auto-V (Auto Velocity) measurement modes. All pertinent inspection data is displayed to the user on a large high-resolution 1/4 VGA display designed to use direct sunlight to enhance the contrast.
* Impact resistant, dust and waterproof housing with rubber field case for tough conditions

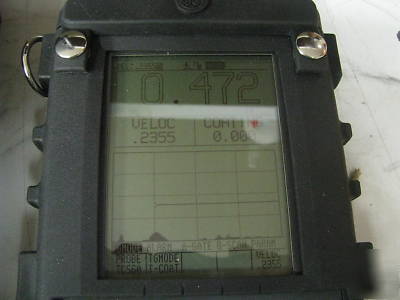

* Large LCD with backlight for display of digital readings, A-scans and B-scans as well as the instrument settings.
* Large A-Scan display for signal measurement verification and adjustment
* Dual-Multi mode for thickness measurements on coated surfaces
* TopCOAT method - measurements of the paint coating and base material are determined and simultaneously displayed in one measurement, even when the backwalls are corroded
* Auto-V - enables thickness measurements to be made on components with unknown sound velocities without the need of a reference block.
* 40 hour operation period with standard AA AlMn batteries

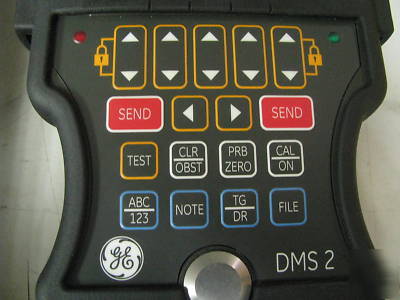

* Quick access to instrument settings and functions by user-friendly menus
* Data memory for adjustment data sets with alphanumeric coding
* Flexible data recorder with alphanumeric data input
* Serial RS 232 interface for data transfer to the PC or a serial printer
* Optimum performance with dialog probes and automatic zero point recognition with all probes
* Solve a variety of applications with the most versatile probe selection available.
The DMS2 is suited for all thickness measurements, especially for corrosion detection, on test objects at high temperatures and on coated parts:
* Tubes, vessels, tanks in the Oil & Gas and Chemical industry
* Complex tube isometries in refineries
* Austenitic materials, general inspection measurements in power plants
* Sound attenuating, casted parts in foundries
* Varied service and maintenance tasks within the aviation industry
* Test objects having large wall thicknesses within the plastics industry
* Thickness measurement on hot components up to 600 C
