24"/32" x 80" morando univ gap-type engine lathe #25795

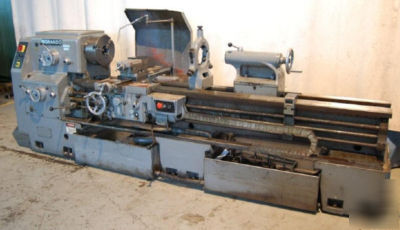

24"/32" x 80" MORANDO UNIVERSAL GAP-TYPE ENGINE LATHE
New 1990, Serial No 045648582, Model PA30/2000,
Hole Thru Spindle...................... 3.5"
Swing Over Bed Ways, Rated............. 24"
Swing thru Gap......................... 31.8"
Swing Over Saddle...................... 15.75"
Distance Between Centers............... 80"
Gap Length............................. 15.35"
Tailstock, Spindle Diameter............ 3.15"
(24) Spindle Speeds, Range............. 20 to 2000 RPM
(48) Carriage Long Feeds............... .04 to 9.16 MMPM
(48) Cross Feeds, Range................ .02 to 4.58 MMPM
(48) Whitworth Thread Changes, Range... 9/16 to 128 TPI
(48) Metric Leads, Range............... .28 to 64 MM
(48) Module Threads, Range............. .07 to 16 MM
