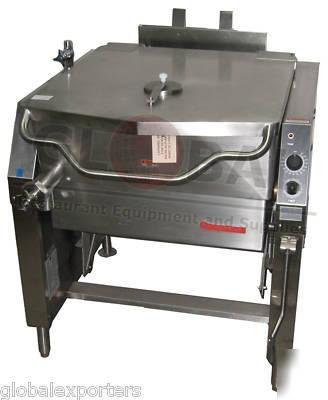

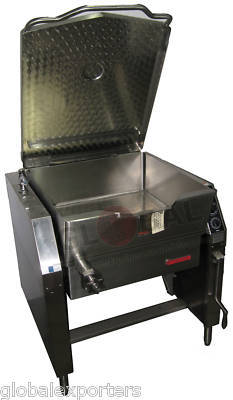

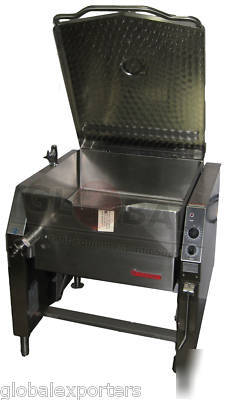

New brand market forge tilting skillet / 30P-stgl
* 30 gallon pan body with 93,000 BTU inputs
* Construction: Sides formed of 10 gauge stainless steel and a 5/8 thick stainless steel clad plate providing a rigid flat cooking surface with improved heat distribution
* Polished stainless steel cooking surface that reduces food from adhering and helps to safely clean the equipment
* Consoles are completely covered with stainless steel that provides protection to the controls and is also easily cleanable and provides clear access for easy floor cleaning
* Sloped front of the pan allows for complete draining of the pan when tilted to 70
* The tilting mechanism includes a precision ground and polished worm for smooth and long lasting tilt operation and positive control with a collapsible hand crank
* Gas burners automatically turn off when the cooking pan is tilted from the horizontal position
* Skillet comes standard with a solid-state temperature control with a positive OFF position and 100 -450 Fahrenheit scale, a pilot light to indicate when the burners are ON, spark pilot ignition system as standard and a one hour mechanical timer is included.
* Rated at 93,000 BTU at 3.5 W.C. natural gas and 10 W.C. propane gas
* Electrical Connection: 120V units supplied with 8 cord, 3 prong plug
