Graphtec craft robo pro vinyl cutter craftrobo uscutter

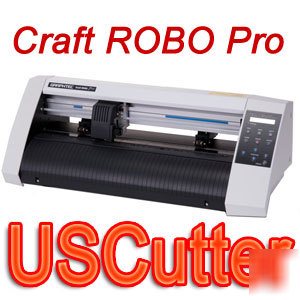

Graphtec Craft ROBO Pro - Professional Craft Cutter
* Combine with your desktop printer (up to A3) for large-format or multiple custom apparel graphics, stickers, decals, contour die-cuts, 3D models & packaging designs.
* Fast & accurate professional cutting plotter of vinyl, film, card stock, foil, heat and image transfer media. Comes standard with Graphtec s Registration Mark Sensor.
* Includes standalone software (ROBO Master Pro design software) plus Cutting Master 2 Plug-in for use with Adobe Illustrator and CorelDraw .
Ultimate Hobbyist Desktop Cutter
Craft ROBO Pro is a desktop sized cutting plotter ideal for serious hobbyists, as well as professionals looking for a compact and portable solution. The Craft ROBO Pro is the professional desktop model of Graphtec's CE5000 series of cutting plotters. The Craft ROBO Pro has a maximum cutting width of 14.8 inches, maximum speed up to 16 inches per second, and cutting force up to 300g .
Craft ROBO Pro is a professional 15 inch cutting plotter that is compact, portable and affordable for designers, crafters and hobbyists.
The Craft ROBO Pro cutting plotter is ideal for decorative media and heat transfer applications, personalized gift packaging, graphic design packaging mock-up, card making and many more products. With Craft ROBO Pro, you can produce high quality, custom apparel graphics and personalized gifts with minimal investment. Use Craft ROBO Pro in your studio to produce packaging samples, custom one-off or short run print and cut (die cut) labels, stickers and full-color T-shirt heat transfers!
Automatic Registration Mark Sensor
Craft ROBO Pro includes Graphtec's exclusive Automatic Registration Mark Sensor, which enables the cutter to detect registration marks printed on many kinds of media, then automatically contour cut (die cut) around the printed image. This ensures fast and accurate professional cutting plotter of vinyl, film, card stock, foil, heat and image transfer media.
The built-in control panel and LCD menu display allows quick access to advanced settings and controls. The cutting speed, force, and offset value can be pre-programmed for each of the materials you cut.
Craft ROBO Pro System Requirements & Included Software
Craft ROBO Pro includes a design program called ROBO Master Pro (Windows Vista and earlier) and Cutting Master 2 (a Plug-in for Adobe Illustrator 8 through CS4 for Windows; Illustrator 10 - Illustrator CS4 on Mac *). Users can download a free update of Cutting Master 2 from CraftROBOstore.com by GRAPHTEC America.
*Mac users must have a complete version of Adobe Illustrator to use the Craft ROBO Pro. Graphtec America provides the free plug-in to Adobe Illustrator. Support & Downloads also available @ /support
Minimum System Requirements (Windows)
* Windows Operating System: Windows 2000/Windows XP/Vista
* CPU: Pentium III 600 MHz or higher
* Memory: 128 MB or more (at least 256 MB recommended)
* Monitor: 1024 x 768 High color (True Color recommended)
* Supported cutter: Craft ROBO Pro (firmware CE3000-CRP Ver. 7.00 or later, connected via the USB interface)
* Supported printers: Windows-compatible printers
* Note: When importing DXF files, the following DXF objects can be loaded into ROBO Master Pro: Lines, polylines, splines, circles, arcs, and ellipses. Block-referenced objects or splines, text, and dimension lines cannot be loaded.
Minimum System Requirements (Mac)
* Macintosh Operating System: OS 8.6 ~ 9.2.2, OS X 10.2.8 ~ 10.5 Leopard
* CPU: PowerPC G3/G4/G5 & Intel Based Processors.
* Support Application: Adobe Illustrator version 10 through CS4 (w/ appropriate Mac OS version)
* Supported Plotters: Craft ROBO Pro and other Graphtec CE series, FC series plotters.
* Supported printers: Mac OS compatible printers
Grit rollers, Sheet or Roll Media (roll supports included)
Min: 1.968 inches (50mm) Max: 19.055 inches (484mm)
14.76 inches wide by 164.04 feet long (375mm x 50M)
14.015 x 78.74 inches (356mm x 2M) *1
Maximum cutting speed (all directions)
Maximum Acceleration (45 Angle)
1 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 cm/s
0.196 inches (5mm) for Alphanumeric characters
(varies depending on the media, font style, etc.)
Number of Pens or Blades Mountable
1 pen or Blade Holder at a time
Sheet or Roll media including marking films (PVC, fluorescent, or reflective film)
up to0.25 mm in thickness. Heat and image transfer papers with backing, craft paper
with backing, card stock, polypro, kent paper, decorative media and papers with use of carrier sheet. (excluding high-intensity reflective film)
Control Interface (selectable)
USB 2.0 / RS-232C / Centronics Parallel
Liquid Crystal Display (16 characters x 1 row)
100~120VAC 200~240VAC 50/60 Hz
60 F to 89.6 F (16 C to 32 C)
(35% to 75% RH non-condensing)
External Dimensions (W x D x H)
24.53 x 11.22 x 8.78 inches (623 x 285 x 223mm)
*1: Depends on type of approved media and cutting conditions
*2: HP-GL is a registered trademark of Hewlett-Packard Company
Cutting vinyls and contour cutting pre-printed media from almost any laser, solvent and water-based inkjet printers are what Graphtec cutting plotters are famous for.
Robo Master 2 (Photoshop and Corel Plugin for PC and Mac)
ROBO Master software, Cutting Master Plug-in, plus Graphtec's ARMS (Advanced Registration Mark Sensor) system.
