Exoxy top vacuum pump enclose for fume hood

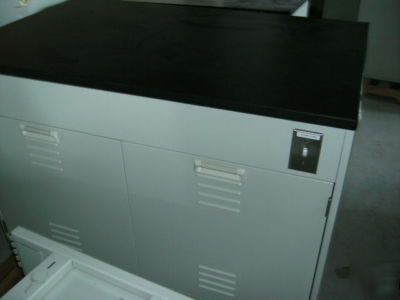

Epoxy Top Vacuum Pump Enclosure
* Vacuum Pump Storage Fume Hood Cabinets are designed without a bottom to allow vacuum pumps andother equipment to be rolled in or out

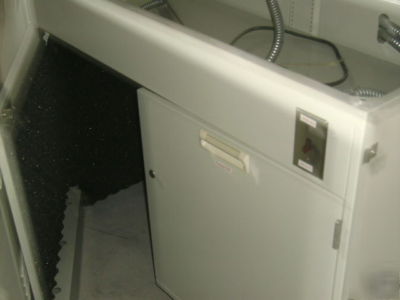

* The interior is lined with 1" thick neoprene foam for sound deadening and easy cleaning.
* Each cabinet is furnished with a 120 VAC, 20 amp, duplex receptacle mounted on the inside cabinet back and a pilot lighted toggle switch mounted in the top front rail. (Wiring is included.)
* Cabinets are also furnished with a 1
1/2" diameter PVC vent pipe for venting or access to the hood above. (Requires a 2" hole in the hood worksurface.)
* The toespace rail is attached to the door to allow total access to the cabinet.
* Cabinet inside clearance at the floor is 16
1/2" front-to-back, 27" high, and 3" less than the overall cabinet length.
Unit's are sound-proofed and internally wired for easy operation. Can be used as a stand alone unit or as base for hood.
