> mitutoyo 2.0-2.8"/50.8-71.12MM borematic bore gage
mitutoyo 2.0-2.8"/50.8-71.12MM borematic bore gage
The Borematic gage features a Trigger-Grip operational handle that provides precise control and allows fast and repetitive measuring, making the gage ideal for checking in-process work/production control.
The 568 series Borematic offers a long service life with its highly durable, industry proven, design and construction.The gage features an interchangeable measuring head design to provide maximum measuring range flexibility and m
easurements can be taken to within .012" of the bottom of blind holes. The Borematic gage also features a SPC data output and Mitutoyo's ABSOLUTE encoder technology. Mitutoyo #568-421 Borematic Specifications:

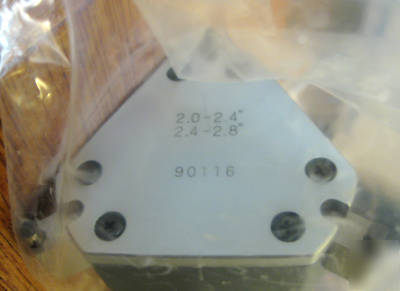

* Type: Interchangeable Anvil/Contact/Interchangeable Head.
* Measurement method: Tri-point.
* Measuring range: 2.0-2.8"/50.8-71.12mm.
* Accuracy: +/-.0003"/0.0076mm (Maximum difference: .0003"/0.0076mm).
* Trigger grip handle for easy, fast & repetitive measuring.
* Measuring force per anvil: 10-30N, depending on diameter measured.
* ABOSLUTE encoder technology retains the origin setting even when powered off.
* Large character LCD display.
* Rotatable display for easy measurment reading - 330 degrees of rotation.
* Battery: SR44 (1 pc.) Silver Oxide cell.

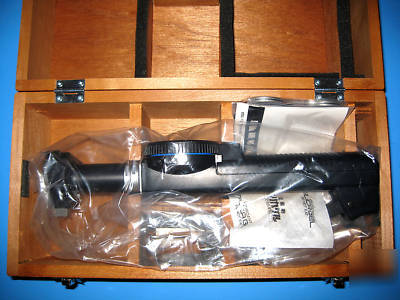

* Furnished in a fitted Wood Case with Wrenches, Battery & Documentation.
