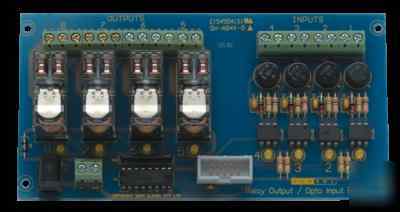

Elexol - i/o 24 combo relay/opto interface board
The I/O 24 Combo Board can be connected to the I/O port of the modules to provide 4 Isolated relay contact outputs suitable for a variety of loads and 4 Opto Isolated inputs.
* 4 x Opto Insulated Inputs for each of the I/O24 port pins
* 4 x Form C type Relays Rated at 5A @ 240VAC with a 12V Coil
* LED indication for relay and opto status
* Screw Terminal Blocks for Opto inputs
* Easy connection by 0.1 pitch 10-way box header to suit standard IDC connectors for connection to the I/O port on the I/O 24 Modules
* Includes 12 inch (30cm) ribbon cable with female headers at each end
