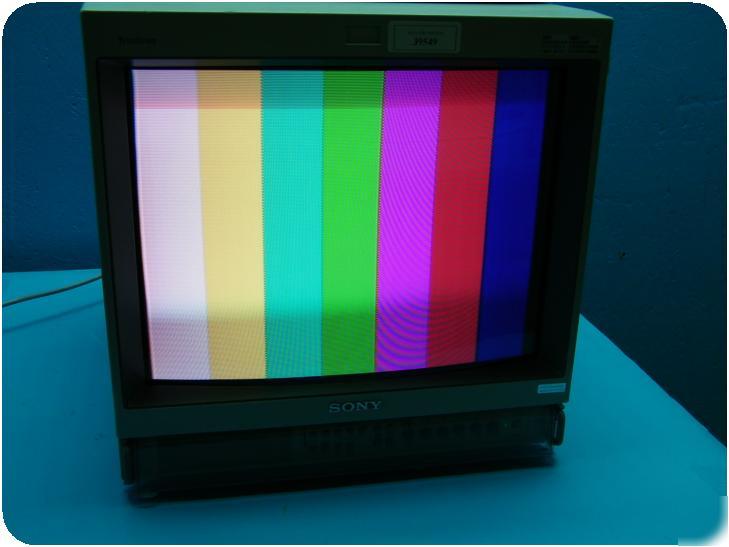

Sony PVM-20M2MDU Trinitron Color Video Monitor
The Sony PVM-20M2MDU is designed specifically for medical applications, the M2MD Series Monitors provide the exceptional clarity and color fidelity required for endoscopy, ultrasound, surgical and laboratory microscopy. The Sony PVM-20M2MDU medical monitor is UL-2601-1 listed, and offer an HR (High Resolution) Trinitron picture tube, in addition to compatibility with NTSC and PAL color systems. The Sony PVM-142MDU design, incorporates knob controls, splash guards and on-screen menus, provides flexibility and easier access to monitor setup.
* High Resolution Trinitron picture tube
* On-screen menu in five languages
* Knob controls of Brightness, Contrast, Aperture, Phase, Chroma and Volume
* IzzitOn System provides visual recording confirmation
* RGB Split Screen (two RGB inputs)
* Analog RGB, Y/C and composite video
* Auxiliary 8 volt DC output
* Improved frequency response
* Splash-proof panels protect against liquids
* Front Panel Cover prevents inadvertent operation
* Automatic selection of standard color systems: NTSC and PAL
Sony PVM-20M2MDU Medical Monitor (Color)
20%/7%/5% of CRT effective screen area
6,500K/9,300K/USER (3200K-10000K, factory setting is 6500K)
Maximum Diagonal Viewable Area
BNC connector 1V p-p +/-6dB, sync negative
phonojack, -5dBu, more than 47kohms
0.3V p-p negative, 75 ohms terminated
0.7V p-p, +/-6dB (Standard color bar signal of 75% chrominance)
BNC connector, Composite sync 4V p-p +/-6dB, negative
BNC connector, 75 ohms terminated
450mm (W) x457.5mm (H) x503mm (D) (17 3/4 x 18 1/8 x 19 7/8 inches)
Approximately 30 kg (66 lbs 2 oz.)
