Reid 6X18 automatic surface grinder,magnetic chuck,otwd

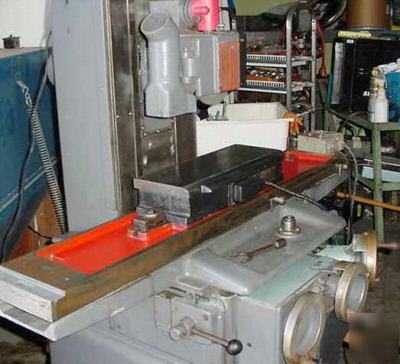

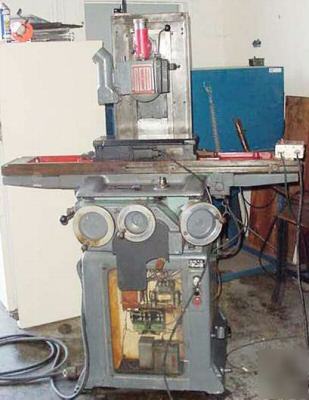

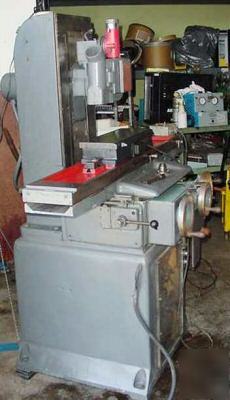

This is a Reid 6X18 Surface Grinder in great physical and operating condition with electromagnetic chuck automatic reversing cycle and over-thewheel-dresser.
* Reid 618 All Electric - Non-Hydraulic Surface Grinder

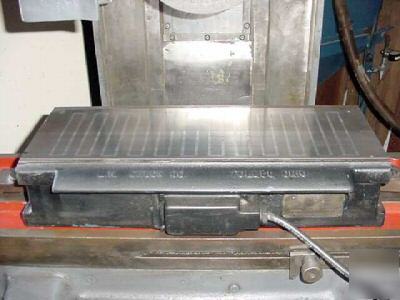

* LW Chuck Electromagnetic Chuck
* Dry Grinder with Exhaust Port for Vacuum
* Maximum Wheel Head Travel / 11-3/4" above table with present 6-3/4" wheel
* Maximum Cross Travel 6-3/4"
* 1-1/4 Horsepower / 220 Volt / 3 Phase / 4 Amps

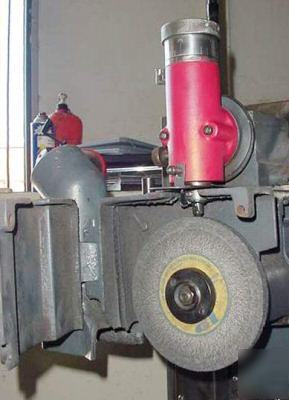

* Top Mounted Dressing Attachment Saves Time
* Down Feed Dial Is Marked In .0005" Increments with .0005" Vernier = .0001" Increments
* Full Turn of Down Feed Dial = .050"
* Cross feed Dial is Marked in .001" Increments with a .0001" Vernier
* Full Turn of Cross Feed Dial is .250"
* Measurements 54" Width X 44" Depth X 70" Height
