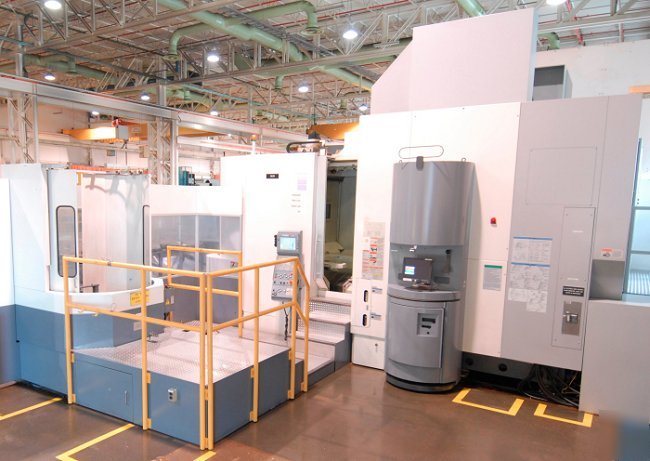

Mazak integrex e-1060V/8
5-AXIS VERTICAL/HORIZONTAL/TURNING MILLING CENTER
NEW: 2004 - LIKE NEW CONDITION
X-AXIS (TABLE FORWARD/BACKWARD).............. 73.82"
Y-AXIS (SPINDLE HEAD TRAVEL RIGHT/LEFT)...... 41.73"
Z-AXIS (SPINDLE HEAD TRAVEL UP/DOWN)......... 52.95"
B-AXIS (SPINDLE HEAD TILT)................... 150 DEGREES (-30 TO +120)
C-AXIS (TABLE ROTATE)........................ 360,000 DEGREES CONTINUOUS
MAXIMUM MACHINING DIAMETER................... 49.21"
MAXIMUM WORKPIECE............................ 49.21" X 49.21"
PALLET SIZE (6 SQUARE TAPPED PALLETS)........ 31.5" X 31.5"
(1 ROUND 4-JAW INDEPENDENT CHUCK) 39.4" DIAMETER MACHINING
SPINDLE: MAX SPINDLE SPEED......... 35 TO 10,000 RPM
SPINDLE TAPER............. CAT 50
SPINDLE MOTOR............. 40/50 HP
TURNING SPINDLE AND TABLE: MAX SPEED......... 500 RPM
C-AXIS INDEXING... 0.0001 DEGREES
RAPID AND CUTTING FEED RATES (X-Y-Z AXIS).... 1,654 IPM
* MAZATROL 640M PRO PC FUSION CNC CONTROL AND E-TOWER COMPUTER SYSTEM
* 276 STATION MAZAK TOOL HIVE AUTOMATIC TOOL CHANGER
* MAZAK PALLETECH 6 STATION SHUTTLE TABLE SYSTEM - CAN BE USED WITH 2 MACH
* THREE CAMERA MACHINE MONITORING SYSTEM
* SCALE FEED BACK ON X,Y & Z AXIS
* RENISHAW TOOL VERIFICATION SYSTEM
* COOLANT THROUGH SPINDLE & FLOOD COOLANT
* TOOL EYE, TOOL BREAKAGE DETECTION, AUTO PECKING CYCLE WITH LOAD DETECTION
* BALLUFF TOOL ID/DATA CONTROL
THIS MACHINE CAN BE INSPECTED UNDER POWER - OUTSTANDING CONDITION
REPLACEMENT COST AS IT IS CURRENTLY SET UP IS $1.4 MILLION
See additional photos on our web site: http://uen.hsix.com/q/webinv/015870=x,1207
