Fujikura fsm-30R ribbon fusion splicer kit usa model
Fujikura FSM-30R Ribbon Fusion Splicer Kit USA Model Used
Model/Part No:FSM30R Our Item ID: 2527

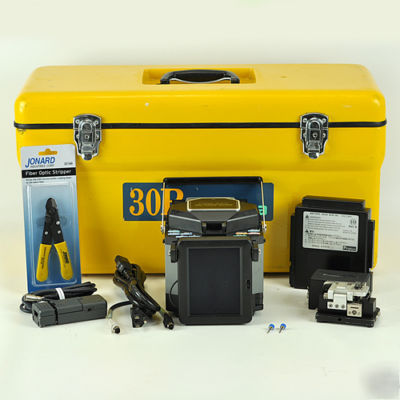

Includes: Fujikura 30R Splicer w/heater, manufacturer's or aftermarket case, fujikura or fitel cleaver (depending on stock), hot jacket stripper, user s manual(pdf), one pair 12 ribbon fiber holders and power cord.
Fujikura 30R Mini mass/ribbon fusion splicer kits in like-new condition. Splices 2-12 fiber ribbons, and single fiber 250um & 900um (with proper fiber holders).
Singlemode (SM), graded index (GI) and dispersion shifted (DS) fiber
complying with ITU-T recommendation G.652, G.651, G.653 respectively
FSM-30R8: Single, 2, 4, 5, 6, and 8 fiber pairs
FSM-30R12: Single, 2, 4, 5, 6, 8, 10, and 12 fiber pairs
irrespective of ribbon or bundle configuration
CCD camera and LCD monitor (5 inches)
No. of splice programs to be set
Equipped (0 - 3500m above sea level)
Mechanical Proof Test on Spliced Fiber
12 VDC from BTR-04 battery pack (Voltage for charging with ADC-07: 100-240 VAC) or 100 -240 VAC with ADC-07 AC/DC converter
Applicable Protect Sleeve Length
150 (W) x 150 (D) x 150 (H) mm
3.3kg including BTR-04 battery pack
2.8kg including ADC-07 AC adapter
No of fusion splices per charge
Approx. 20 times with HJS-02 power save mode
Item Tested?: Partially TestedPhysical Condition: Very Good; Working Condition: Fully Functional30 | 24x 12x12 | 1
