EPI-BRIGHTFIELD / DARKFIELD / POLARIZATION (EA-5) ATTACHMENT FOR LOMO MULTISCOPE MICROSCOPES
The EPI-BRIGHTFIELD / DARKFIELD / POLARIZATION (EA-5) ATTACHMENT FOR LOMO MULTISCOPE MICROSCOPES incorporates an Optical Path Selector (OPS), which controls a sliding semi-reflective mirror, and an aperture diaphragm. For contrast enhancement, two filter slots accept the three included filters (green, blue and yellow]. An analyzer and polarizer are also included. For the most light-demanding Darkfield studies, a centerable 6V/15W halogen bulb provides bright, uniform illumination, while an external power supply unit ensures continuous intensity control. Only ordered as an Upgrade Package (UP-EA5), the EA-5 comes with five objectives and two spare bulbs in a wooden box.
The EA-5 Epi-illumination attachment is used with high-performance Achromatic Epi-Objectives able to act as their own Darkfield or Brightfield condenser, therefore allowing quick change between contrast techniques. The revolving nosepiece slides out and one of the five included objectives screws in. It is a great upgrade package that performs unbelievably well.

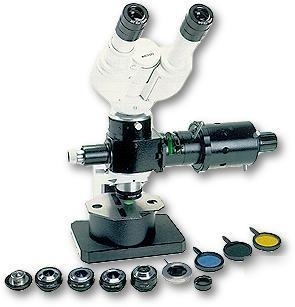

EA-5 attachment shown installed on BMH4-BF microscope.
All accessories shown are included
Objectives for EA-5 Epi-lllumination Attachment (Mechanical Tube Length: 190mm)
Configuration Sheet for M-SUP-EA5 (EPI-BRIGHTFIELD/DARKFIELD/POLARIZATION)
Objective, Achromatic, Flat Field, 9x, N.A.0.20, BF, DF, POL
Objective, Achromatic, Flat Field, 21x, N.A.0.40, BF, DF, POL
Objective, Achromatic, Flat Field, 40x, N.A.0.65, BF, DF, POL
Objective, Achromatic, Flat Field, 95x, N.A.1.00, BF, DF, POL
Objective, Achromatic, Flat Field, 95x, N.A.1.25, Oil, BF, DF, POL
Bulb, Halogen, 6V/15W, Bayonet
Filter, Green, w/Holder, DIA 33mm
Filter, Blue, w/Holder, DIA 33mm
Filter, Neutral Density, DIA 33 mm
Filter, Yellow, w/Holder, DIA 33mm
Filter, Diffusing, w/Holder, DIA 33mm
Power Supply 110V, 50/60Hz, 6V, 25W
