1/8 din panel mount jenco ph / orp controller -3671N

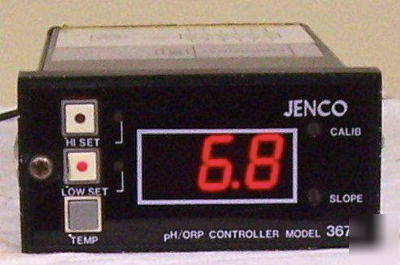

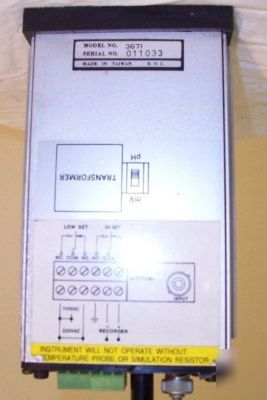

1/8 DIN panel mount pH/ORP controller with dual SPDT Hi/Lo relays, manual set points and calibration are via potentiometers. Features a voltage /recorder output and an internal pH/ORP select switch. Display is a large bright red LED. Connectors are a BNC input and spade lug screw type connector block. Meter requires a Pt-100 ATC or a simulation resistor for temperature. Power is 115/230 VAC. Specifications and operating manual is provided and can be found on the internet.Dimensions are 96 mm x 48 mm x 172 mm.
The following are Electrode / Accessory Options that are not included with the item listed here:
1. JENCO 1922557-020HTV12 Industrial Flat tip, Epoxy Body, 3/4 inch MNPT, Inline double Junction pH/Reference/Temperature probe with BNC connector and a pt-100 RTD for ATC sensor with 3mm Phono Plug and 20 foot long cable. (Range 0 pH to 12 pH) Obtain from JENCO dealer.
2. JENCO 1923737-020BGV12 Industrial Spherical tip with Protective Guard, Epoxy Body, 3/4 inch MNPT, Inline Double Junction pH/Reference/Temperature probe with BNC connector and a pt-100 RTD for ATC sensor with 3mm Phono Plug and 20 foot long cable. (Range 0 pH to 12 pH) Obtain from JENCO
