Rohde & schwarz upl audio analyzer
ROHDE & SCHWARZ UPL AUDIO ANALYZER

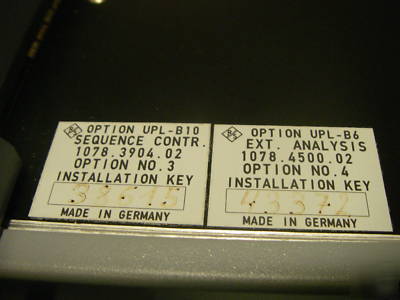

OPTIONS INSTALLED: UPL-B10 (sequence contr.) AND

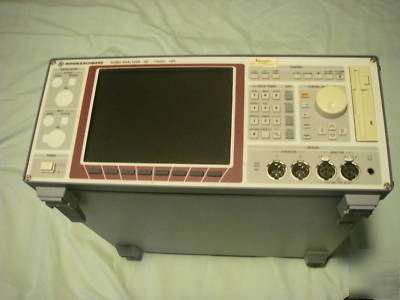

Unit is used in overall cosmetically good condition.

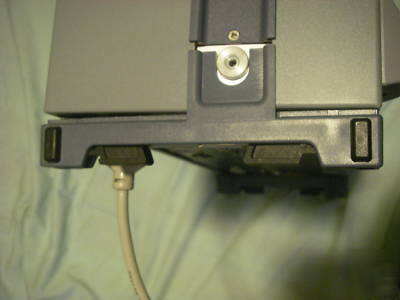

One of the rear brackets has loose screws that can t be tighten

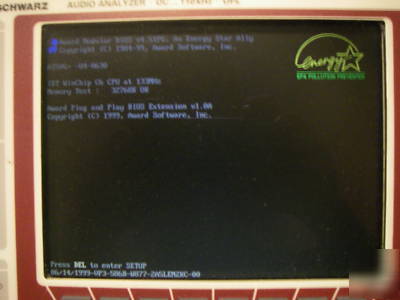

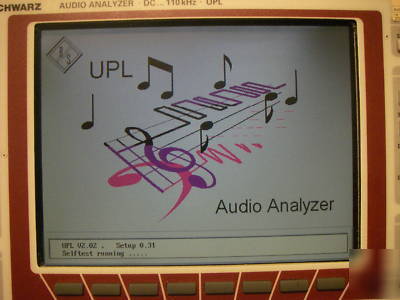

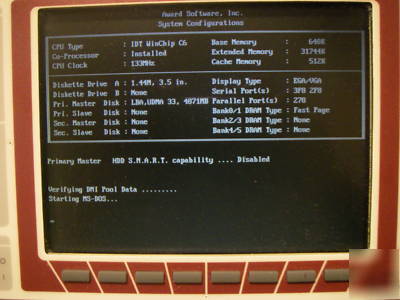

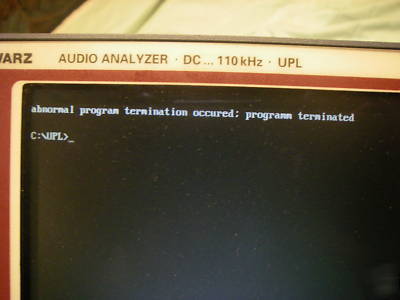

It does power up, goes through boot and start sequence and then shows error. It might need just drivers update and/or calibration
Comes with power cord and protective front cover
Manuals and drivers can be found on line links bellow
Compact instrument with integrated PC
Wide variety of test functions and numerous test signals for performing virtually all measurement tasks
Versatile analysis thanks to internal FFT analyzer of wide dynamic range and high frequency resolution
Future-proof: new test functions can be loaded from diskette
Any number of digital filters, also for analog measurements
Maximum dynamic range for the analysis of high-grade components
Intelligent operator guidance and context-sensitive help system (German and English)
Mnemonic analysis and generation of channel status data of digital audio interfaces
Measurement/generation of protocol errors at digital interfaces
More than 10 weighting filters highpass, lowpass, bandpass filters
http://www2.rohde-schwarz.com/en/products/test_and_measurement/audio/UPL-%7C-Key_Facts-%7C-4-%7C-944.html
You can find owner manuals here:
http://www2.rohde-schwarz.com/en/products/test_and_measurement/audio/UPL-%7C-Manuals-%7C-22-%7C-1120-%7C-1120.html
http://www2.rohde-schwarz.com/en/products/test_and_measurement/audio/UPL-%7C-Manuals-%7C-22-%7C-1120.html
