Pcix multi-axis motion controller,servo & stepper 2-4X
PCIx Multi-Axis Motion Controller
The PCIx is a PCI bus-based motion controller with 2 or 4 axes of motion that support both servo and stepper applications.
ALSO TRIED IN PC WITH WINDOWS XP AND DETECTED AS PLUG N PLAY BUT CAN NOT ABLE TO CHECK FURTHER DUE TO NOT HAVING DRIVERS / SOFTWARE'S AND FURTHER KNOWLEDGE ABOUT THIS KIND OF HARDWARE

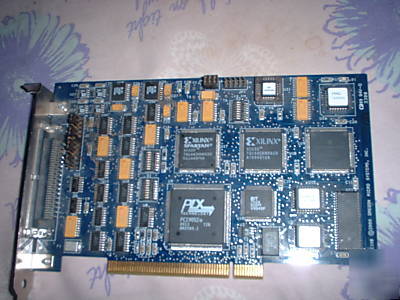

NO CABLE / ATTACHMENT / SOFTWARE DISK OR DRIVER JUST CARD AS SEEN IN PICTURE
information exactly on this pci SCSI type interface card.
PCBPCIXB by DREGON MICRO SYSTEMS, INC.
tm 4 axis motion controller that conforms to the PCI Rev. 2.2 specification. The PCIx is a four-axis controller for either servo or stepping motors. It supports 12 general purpose bits which are opto-isolated for optimum noise immunity. The home and over travel inputs are opt-isolated.
The architecture of the PCIx includes a dual-port Ram for special functions where fast collection of large amounts of data is required, such as profile capture.
The servo output is a +/- 10V or 0-10V signal that is driven by a 16 bit DAC. The servo control loop is a PID filter with feed forward coefficients.
The step pulse is a TTL level 50% duty cycle square wave that supports velocities of 0 through 1,044,000 pulses per second.
Independent and coordinated motion of all axes
A single shielded connector shares a common pin-out and configuration with other OMS controllers.
Constant velocity linear interpolation (all axes).
Software for Windows 95/98, Windows 2000 and Windows NT.
Custom, Parabolic, S-curve & Linear trajectory profiles.
Compatible with the IO68-M breakout board
