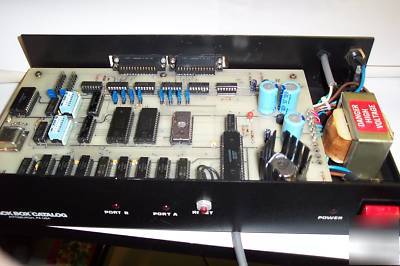

> Z80 with ps, 2 serial , 2K rom, 4K sram, with data disk
Z80 with ps, 2 serial , 2K rom, 4K sram, with data disk
2 - Serial Ports, RS232C(DB25), baud rate for each port selectable 110-19200.
2 - Readable 8 pos. dipswitches, address 0x10 & 0x20.
Z80 CPU, P8251A Serial Controller, 2716 EPROM,
MC1489 & MC1488 RS232C interface, MC14411 Freq Gen. 74LS14, 74LS138,
74LS00, 74LS04, 74LS240, MM2114 SRAM (4K)
SRAM Address redundant at 800-1FFF 2800-3FFF & 4800-5FFF....
Included: 3.5 disk with ROM Data, HEX and Disassembled
Board and Power Supply in black steel enclosure with on/off sw and reset push button.
Each serial port has a LED to indicate I/O activity.
In working order, Power LED lights.
