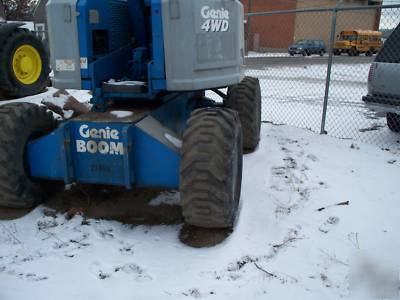

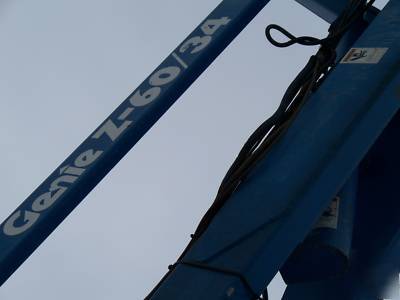

Genie z-60 rough terrain boom lift

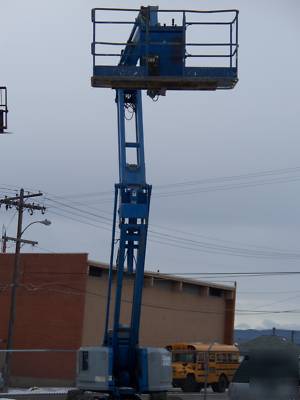

Height, platform maximum 60 ft
Height, stowed maximum 8 ft 4 in

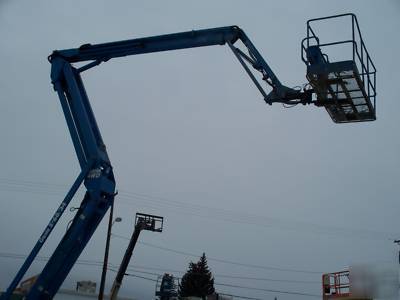

Horizontal reach maximum 34 ft
Turning radius (outside) 19.5 ft
Turntable rotation (degrees) continuous

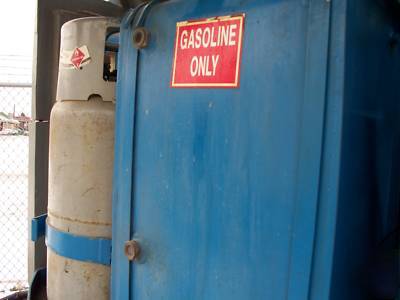

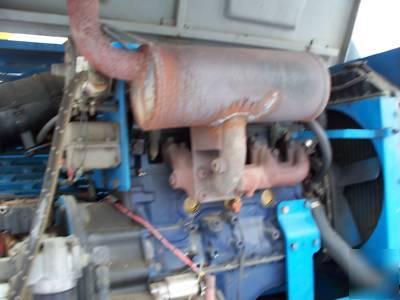

Power source Ford 63 Hp Gasoline/LPG LRG-423
Drive speed, stowed 0 to 4.5 mph
Drive speed booms raised or extended, 0 to 0.6 mph
Airborne noise emissions 80 dB
Maximum sound level at normal operating workstations
Platform dimensions, 8 foot 36 x 96 in
Platform leveling self-leveling
AC outlet in platform standard

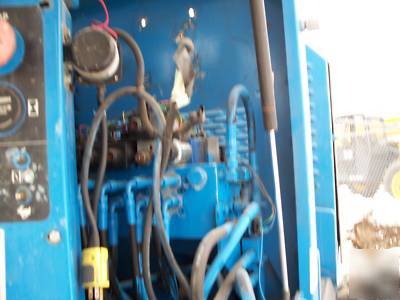

Hydraulic pressure, maximum 2500 psi
Grade ability, stowed 20% / 35%
