Digital light meter 100,000 lux lcd lab photo camera

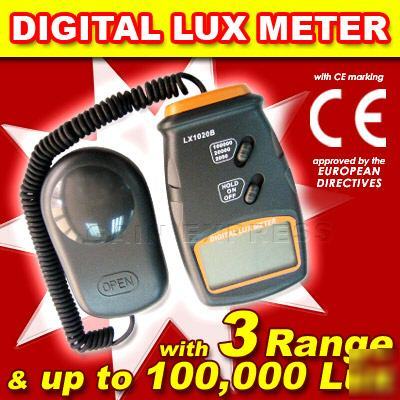

Newest Digital LUX Meter with 100,000 LUX (LX-1020B)
LX-1020B features an extremely precise accuracy of 4.0% rdg through 0-10,000 Lux readings and 5.0% rdg through 10,000-100,000 Lux readings in three ranges of 2,000 LUX, 20,000 LUX, and 100,000 LUX. Another good feature is that it include DATA HOLD function which the data obtained becomes a very useful information to maintain the brightness of any environment.
The light sensitive component uses a long life silicon diode to ensure stability with spectral response filter and fully corrected for the angular incidence of light. It is particularly important for photography taking where brightness or the intensity of light plays a very essential factor, it determines the proper exposure for a photograph. Light meters are also used in the fields of cinematography and scenic design, in order to determine the optimum light level for a scene and in the general field of lighting, where they can help to reduce the amount of waste light used in the home, light pollution outdoors, and plant growing to ensure proper light levels. It can be used to measure luminance in any environments such as illumination control, weather observation and even in multiple work places like factories, offices, shops, schools, restaurants, beauty salons, electro-optical sources, research teaching, metallurgy building, industry inspection, agriculture research. It is valuable to provide the correct light intensity for each environment. Otherwise, energy not only could be wasted but over-illumination can lead to adverse health effects and can decrease worker efficiency.
Our digital meter has CE marking which certifies that it comply with the set essential health standards and safety requirements set out by the European Directives. You are ensure of your safety while using the LX-1020B.
* Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
* With separate Light Sensor allows user take measurements at an optimum position and convenient testing
* Equipped with reliable Auto-Range and Auto Zero-Adjustment
* Large LCD provides big digits, permits a wide range of light measurements of up to 100,000lux
* Provides Data-Hold, keeps the measured values that can be of use later
* Equipped with LSI-Circuit to provide high reliability and durability
* Low in power consumption which gives you long lasting power with long life silicon photo diode inside
* Highly accurate with precise and easy readout even in high ambient light
* With built-in Low battery indication, you'll know when to replace the battery long before its empty
* It includes a FREE protective carrying case with contoured form inside to absorb the shock impact and helps keep the device in place complete with Atop cover for the sensor to keep the sensitive light sensor away from any unwanted incidents while not in use so you can carry your device anywhere safely and worry-free
* Range Coverage is from 0~100, 000 LUX (3 ranges)
** ** *2,001 - 20,000 LUX (Reading 10)
** ** *20,001 - 100,000 LUX (Reading 100)
****** 0 ~ 10,000 ** ** Lux: 4.0% +/- 0.5 F.S
***** 10,000~100,000***Lux: 5.0% + 10 digits
* Temperature Characteristic : +/- 0.1% / C
* Test rate : 0.2 times / sec.
* One silicon photo diode with filter
* Operation temperature-humidity : 0 C to 40 C (32 F-104 F) 0-70% Rh;
* Storage temperature-humidity: -10 C to 50 C (14 F-122 F) 0-80% Rh
Indication of " 1" (2,000 Lux/20,000 Lux),
Indication of "OVER" (100,000 Lux)
106 x 57 x 26mm (photo detector),
230x72x30mm (meter body),
150cm (photo detector lead);
Click here to view or download the detailed information on how to use, operate and maintain LX-1020B.
